98DW30-R3 系列 30瓦 3KV隔離電壓 4:1寬輸入 直流對直流電源轉換器

狀態:
數量:
  • 98DW30-R3 系列
  • YDS
功能&特點


  • 寬輸入4:1電壓範圍。

  • 效率高達88%。

  • 穩壓輸出類型。

  • 不需最小負載。

  • 操作環境溫度:-40°C To +80°C。

  • 產品保固3年。

  • 依據EN50155規範設計。




Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified


Part Number Input Voltage Range Nominal Input Voltage Output Voltage Range Output Current Efficiency
Vdc No-Load
(mA TYP)
Full Load
(mA TYP)
Vdc mA %TYP
98DW30-24S03R3NL 9-36 6 1213 3.3 7500 85
98DW30-24S05R3NL 9-36 6 1453 5 6000 86
98DW30-24S12R3NL 9-36 6 1420 12 2500 88
98DW30-24S15R3NL 9-36 6 1420 15 2000 88
98DW30-48S03R3NL 18-75 5 607 3.3 7500 85
98DW30-48S05R3NL 18-75 5 726 5 6000 86
98DW30-48S12R3NL 18-75 5 710 12 2500 88
98DW30-48S15R3NL 18-75 5 710 15 2000 88
98DW30-110S03R3NL 40-160 4 268 3.3 7500 84
98DW30-110S05R3NL 40-160 4 321 5 6000 85
98DW30-110S12R3NL 40-160 4 313 12 2500 87
98DW30-110S15R3NL 40-160 4 313 15 2000 87
98DW30-24D12R3NL 9-36 6 1420 ±12 ±1250 88
98DW30-24D15R3NL 9-36 6 1437 ±15 ±1000 87
98DW30-48D12R3NL 18-75 5 710 ±12 ±1250 88
98DW30-48D15R3NL 18-75 5 718 ±15 ±1000 87
98DW30-110D12R3NL 40-160 4 313 ±12 ±1250 87
98DW30-110D15R3NL 40-160 4 321 ±15 ±1000 85



Input Specifications



Parameters Conditions Min Typ Max Units
Voltage Types       4:1 %
Surge Voltage
(1 sec. max.)
24V models     50 Vdc
48V models     100
110V models     170
Input Filter PI Type
Reflected ripple current     30   mAp-p
Remote ON/OFF
(Refer to –Vin PIN)
Positive Logic
ON : Open
OFF: Short

3
0

12
1.2
Vdc
Input current of Ctrl PIN 0.5   0.5 mA
Remote off input current   3


Output Specifications


Parameters Conditions Min Typ Max Units
Voltage Tolerance 100% full load     ±2 %
Short Circuit Protection Continuous ,
Auto-Recovery

Output Power Protection Continuous ,
Auto-Recovery
120   170 %
Over Voltage Protection 3.3Vdc 3.7   5.4 Vdc
5Vdc 5.6   7.0
12Vdc 13.5   19.6
15Vdc 16.8   20.5
Line Regulation Nominal Input Voltage     ± 0.5 %
Load Regulation Single output models     ± 0.5 %
Dual output models     ± 5
Ripple & Noise
(BW=DC To 20MHz Measured with a 10uF MLCC.)
3.3V&5.0V models     75 mVp-p
Other models     100
Start up time Nominal Input Voltage     30 ms
Transient response setting time 25% load step change   350   us


General Specifications


Parameters Conditions Min Typ Max Units
Isolation Voltage Input To Output 3000     Vdc
Input(Output) To Case 1600
Isolation Resistance 500Vdc 1000
Switching Frequency Full load, nominal input   250   KHz
Operating Temperature   -40   +80
Storage Temperature   -55   +125
Case Temperature       +105
Humidity Non Condensing 5   95 %
Cooling Natural Convection (20LFM)
Case material Six-side shield case
MTBF MIL-HDBK-217F@25℃ 1500000     Hours
Weight   40 g

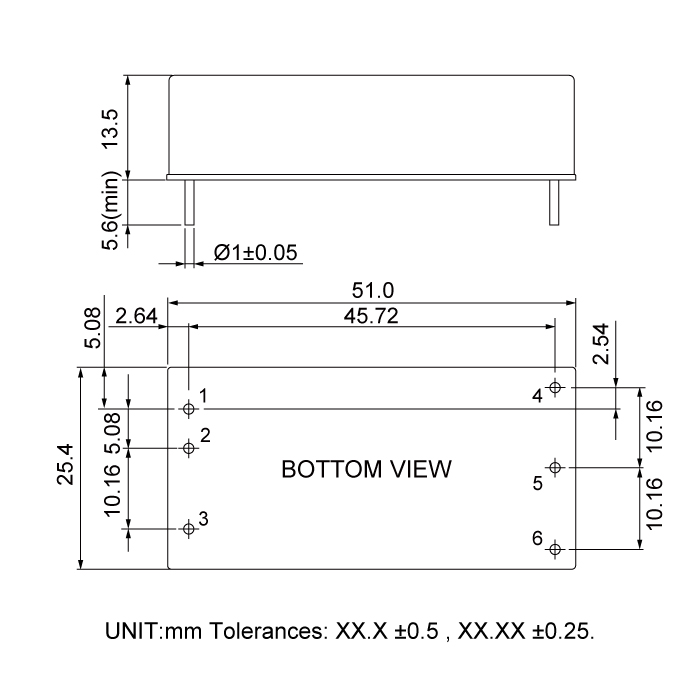

Dimensions   51.0 x 25.4 x 13.5 mm



 Files Download    98DW30-R3 Series.pdf
