輸出功率高達5瓦。
低雜訊。
穩壓輸出類型。
500Vdc 隔離電壓。
MTBF:>1,500,000 hrs。
操作環境溫度:-40℃ TO +85℃。
Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified
Part Number | Input Voltage | Output Voltage | Output Current | Efficiency |
---|---|---|---|---|
Vdc | Vdc | mA | %TYP | |
85D-05S05RNNL | 5 | 5 | 1000 | 60 |
85D-05S12RNNL | 5 | 12 | 470 | 65 |
85D-05D15RNNL | 5 | ±15 | ±190 | 65 |
85D-12S12RNNL | 12 | 12 | 470 | 65 |
85D-12S15RNNL | 12 | 15 | 400 | 65 |
85D-12D12RNNL | 12 | ±12 | ±230 | 65 |
85D-24S05RNNL | 24 | 5 | 1000 | 60 |
85D-24S15RNNL | 24 | 15 | 400 | 65 |
85D-24D12RNNL | 24 | ±12 | ±230 | 65 |
85D-48S15RNNL | 48 | 15 | 400 | 65 |
85D-48D12RNNL | 48 | ±12 | ±230 | 65 |
85D-48D15RNNL | 48 | ±15 | ±190 | 65 |
Parameters | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|
Voltage Tolerance | ±10 | % | |||
Filter | Capacitor |
Parameters | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|
Voltage Tolerance | ±5 | % | |||
Short Circuit Protection | Continuous | ||||
Line Regulation | ± 0.3 | % | |||
Load Regulation | ± 0.5 | % | |||
Ripple & Noise | BW=DC To 20MHz | 50 | mVp-p | ||
Transient response setting time | 50% load step change | 350 | us |
Parameters | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|
Isolation Resistance | 500Vdc | 1000 | MΩ | ||
Switching Frequency | 20 | KHz | |||
Operating Temperature | -40 | +85 | ℃ | ||
Humidity | Non Condensing | 95 | % | ||
Cooling | Free air Convection | ||||
Case material | Nickel Coated With Non-Conductive Base | ||||
Weight | 55 | g | |||

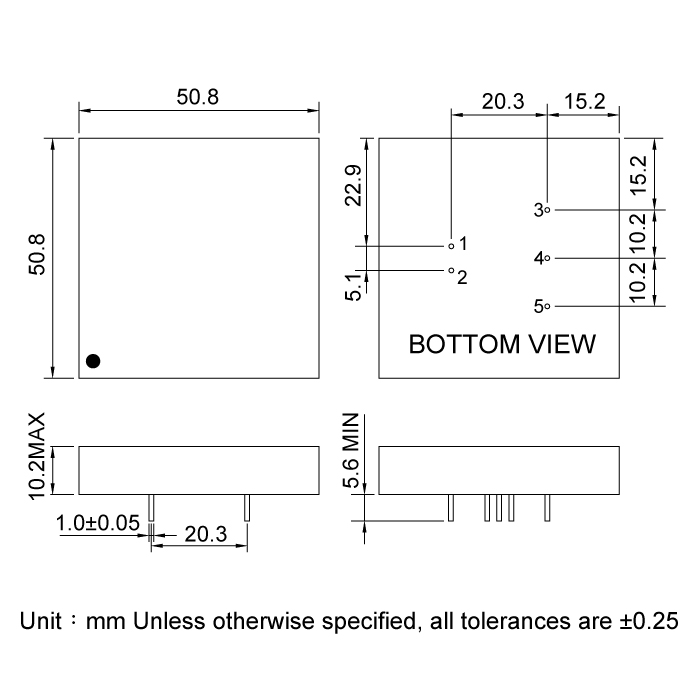

Dimensions | 50.8 x 50.8 x 10.2 | mm |
Files Download 85D Series.pdf
Certification
