68DW-R1 系列
YDS
10瓦 DIL 包裝。
寬輸入4:1電壓範圍。
100%高溫預燒測試。
效率高達85%。
可提供客製化。
具備遙控開關功能。
符合UL94V-0規範包裝材質。
操作環境溫度：-40°C 至 +87°C。
產品保固3年。
依據EN50155規範設計。
| Part Number | Input Voltage | Input Current | Output Voltage | Output Current | Efficiency | |
|---|---|---|---|---|---|---|
| Vdc | No Load (mA TYP) | Full Load (mA TYP) | Vdc | Full Load (mA) | %TYP | |
| 68DW-110S03R1 | 40-160 | 6 | 112 | 3.3 | 3000 | 81 |
| 68DW-110S05R1 | 40-160 | 6 | 110 | 5 | 2000 | 82 |
| 68DW-110S12R1 | 40-160 | 6 | 108 | 12 | 833 | 84 |
| 68DW-110S15R1 | 40-160 | 6 | 107 | 15 | 670 | 85 |
| 68DW-110D12R1 | 40-160 | 6 | 106 | ±12 | ± 420 | 85 |
| 68DW-110D15R1 | 40-160 | 6 | 109 | ±15 | ± 340 | 85 |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Types | 4:1 | ||||
| Surge Voltage (1 sec. max.) | 110V models | 170 | Vdc | ||
| Input Filter | PI Type | ||||
| Reflected ripple current | 30 | mAp-p | |||
| Remote ON/OFF (Refer to –Vin PIN) | Positive Logic ON : Open OFF: Short | 3 0 | | 12 1.2 | Vdc Vdc |
| Input current of Ctrl PIN | 0.5 | 0.5 | mA | ||
| Remote off input current | 3 | mA |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | Full load@Vin(nom.) | ±2 | % | ||
| Line Regulation | ± 0.5 | % | |||
| Load Regulation | Single Dual(Balance Load) | ± 0.5 ±; 0.5 | % | ||
| Cross Regulation | Dual(25% To 100% Load) | ±5 | % | ||
| Ripple & Noise | Output:3-15V TYPES BW=DC To 20MHz | 100 | mVp-p | ||
| Output >15V TYPES BW=DC To 20MHz | 1% of Vout | mVp-p | |||
| Transient response setting time | 25% load step change | 350 | us | ||
| Short Circuit Protection | Hiccup, automatic Recovery |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Voltage | 1600 | Vdc | |||
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | 330 | KHz | |||
| Operating Temperature | with derating | -40 | +87 | ℃ | |
| Storage Temperature | -55 | +125 | ℃ | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Natural Convection (20LFM) | ||||
| Case Material | Nickel coated copper with no-conductive base | ||||
| MTBF | MIL-HDBK-217F@25℃ | 900000 | Hours | ||
| Weight | 17.5 | g | |||

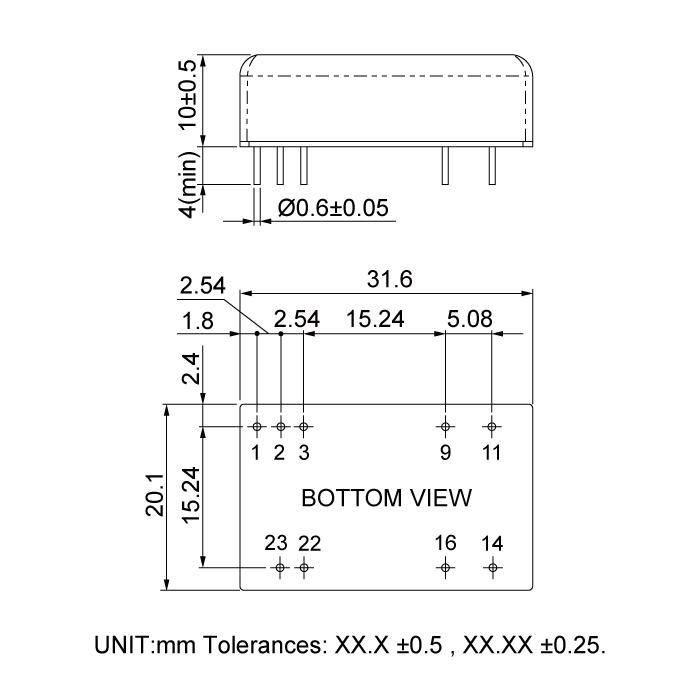

| Dimensions | 31.6 x 20.1 x 10.0 | mm | |||
Files Download
68DW-R1-Series.pdf
