41D 系列 1.8瓦 2KVrms隔離電壓 直流對直流電源轉換器

狀態:
數量:
  • 41D 系列

  • YDS

功能&特點


  • 24PIN DIP 包裝。

  • 效率高達85%。

  • 非穩壓輸出和穩壓輸出兩種類型。

  • 低雜訊。

  • 內部為SMD結構。

  • 工業標準引腳。

  • 操作環境溫度:-40℃ 至 +85℃。

  • 不需外部零組件。




Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified


Part Number Output Voltage Output Current Efficiency
Vdc mA %TYP
41D-XXS05RNL 5 360 58
41D-XXS05NNL 5 360 70
41D-XXD05NNL ±5 ±180 70
41D-XXS09RNL 9 200 60
41D-XXS09NNL 9 200 70
41D-XXD09NNL ±9 ±100 70
41D-XXS12RNL 12 150 60
41D-XXS12NNL 12 150 75
41D-XXD12RNL ±12 ±75 60
41D-XXD12NNL ±12 ±75 75
41D-XXS15RNL 15 120 60
41D-XXS15NNL 15 120 75
41D-XXD15RNL ±15 ±60 60
41D-XXD15NNL ±15 ±60 75
41D-XXS24RNL 24 75 60
41D-XXS24NNL 24 75 80
41D-XXD24RNL ±24 ±38 60
41D-XXD24NNL ±24 ±38 80
Recognized By UL 60950-1
41D-05S05NNL,41D-05S05RNL,41D-05S09NNL,41D-05S24NNL,
41D-12S05RNL,41D-24S05NNL,41D-24S24NNL

Note:
1. ”XX” Is Input Voltage:05=5Vdc,09=9Vdc,12=12Vdc,15=15Vdc.24=24Vdc.
2. The input voltage increases, there will be an increase in efficiency



Input Specifications


Parameters Conditions Min Typ Max Units
Voltage Tolerance Vo,Io Nom     ±10 %
Filter Capacitor


Output Specifications


Parameters Conditions Min Typ Max Units
Voltage Tolerance 100% full load     ±5 %
Short Circuit Protection Regulated
(Continuous)

Short Circuit Protection Unregulated
(Short Trem)
    1 Sec
Line Regulation Regulated     ±0.3 %
Load Regulation Regulated     ±0.5 %
Ripple & Noise BW=DC To 20MHz     50 mVp-p
Line Regulation Unregulated
(For 1% of Vin)
  1.2   %
Load Regulation Unregulated
(20% To 100% F.L)
    10 %


General Specifications


Parameters Conditions Min Typ Max Units
Isolation Resistance 500Vdc 1000
Switching Frequency Full load, nominal input   50   KHz
Operating Temperature   -40   +85
Humidity Non Condensing     95 %
Cooling Free air Convection
Case material DAP
MTBF MIL-HDBK-217F@25℃
(Unregulated)
2500000     Hours
MTBF MIL-HDBK-217F@25℃
(Regulated)
1500000     Hours
Weight   9.0 g
Dimensions   33.02 x 14.73 x 10.41 mm

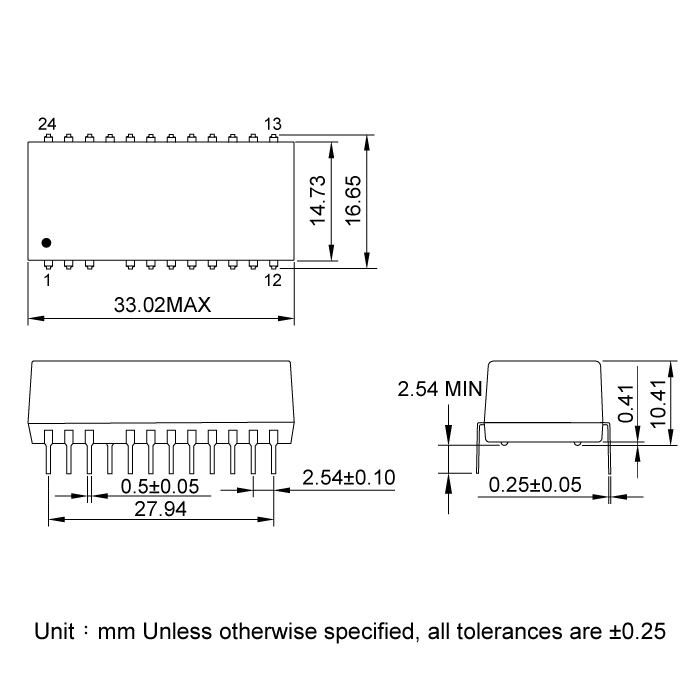

Dimension



41D




 Files Download       41D-Series.pdf



Certification
