3PIN SIP 包裝。
腳位兼容線性穩壓器 LM78XX。
效率高達97%(無隔離/不需散熱片)。
提供客製化。
包裝材質符合 UL94V-0。
操作環境溫度:-40°C 至 +85°C。
產品3年保固。
短路保護,過熱關機。
Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise
Specified
Part Number | Input Range | Output Voltage | Output Current | Efficiency | |
---|---|---|---|---|---|
Vdc | Vdc | mA | Min. Vin (%) | Max. Vin (%) | |
01D-1R5-500 | 4.75-30 | 1.5 | 500 | 73 | 63 |
01D-1R8-500 | 4.75-34 | 1.8 | 500 | 82 | 71 |
01D-2R5-500 | 4.75-34 | 2.5 | 500 | 87 | 77 |
01D-3R3-500 | 4.75-34 | 3.3 | 500 | 91 | 81 |
01D-05-500 | 6.5-34 | 5.0 | 500 | 94 | 86 |
01D-6R5-500 | 8.0-34 | 6.5 | 500 | 95 | 88 |
01D-09-500 | 11-34 | 9.0 | 500 | 96 | 92 |
01D-12-500 | 15-34 | 12 | 500 | 97 | 94 |
01D-15-500 | 18-34 | 15 | 500 | 97 | 95 |
Output Specifications
Parameters | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|
Voltage Tolerance | ±3 | % | |||
Short Circuit Protection | Hiccup, automatic recovery | ||||
Line Regulation | 1.5V to 6.5V | 0.4 | % | ||
9V to 15.5V | 0.2 | % | |||
Load Regulation | 1.5V to 6.5V (10% To 100% F.L) | 0.6 | % | ||
9V to 15.5V (10% To 100% F.L.) | 0.4 | % | |||
Ripple & Noise (without Output Capacitor) | 1.5V to 6.5V (BW = DC To 20MHz) | 30 | mVp-p | ||
9V to 15.5V (BW = DC To 20MHz) | 40 | mVp-p | |||
Transient response setting time | 25% load step change | 350 | us |
General Specifications
Parameters | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|
Switching Frequency | 330 | KHz | |||
Operating Temperature | With derating | -40 | +85 | ℃ | |
Humidity | Non Condensing | 95 | % | ||
Cooling | Natural Convection (20LFM) | ||||
Case material | Non-Conductive Black Plastic | ||||
Weight | 2.0 | g | |||

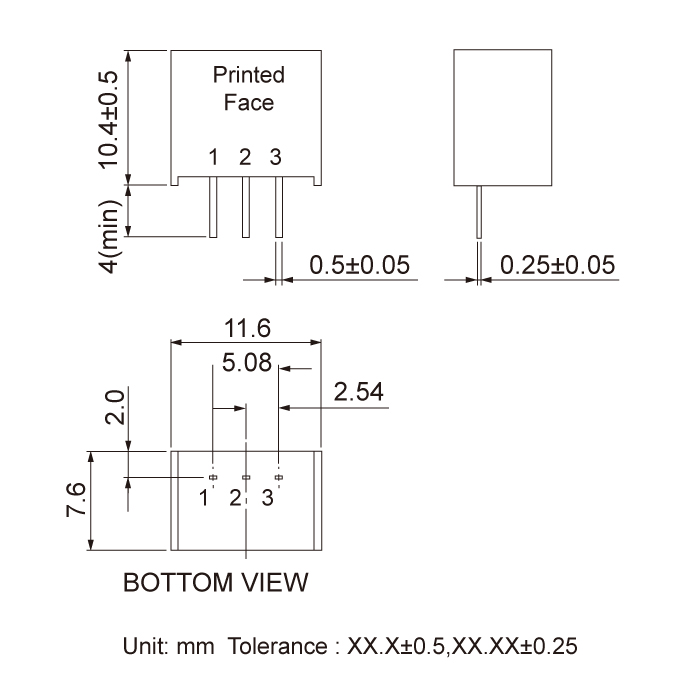

Dimensions | 11.6 x 7.6 x 10.4 | mm | |||
MTBF (+25°C) | using MIL-HDBK 217F | 21098 x 103 | hours | ||
MTBF (+71°C) | using MIL-HDBK 217F | 4212 x 103 | hours |
Certification
