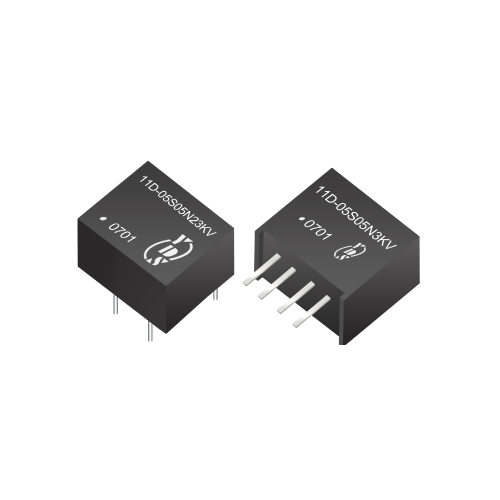

11D-3KV 系列 0.25瓦 3KV隔離電壓 直流對直流電源轉換器

狀態:
數量:
  • 11D-3KV 系列
  • YDS
功能&特點


  • 4PIN SIP & 8PIN DIL 包裝。

  • 效率高達85%。

  • 非穩壓輸出類型。

  • 內部為SMD結構。

  • 不需外部零組件。

  • 操作環境溫度:-40°C 至 +85°C。

  • 工業標準引腳。




Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified


Part Number Output Voltage Output Current Efficiency Package Style
Vdc mA % TYP "X"
11D-XXS03N3KV 3.3 76 65 1
11D-XXS05N3KV 5 50 65 1
11D-XXS09N3KV 9 28 67 1
11D-XXS12N3KV 12 21 70 1
11D-XXS15N3KV 15 16 70 1
11D-XXS24N3KV 24 10 70 1
11D-XXS03NX3KV 3.3 76 65 2 / 3 / 4 / 5
11D-XXS05NX3KV 5 50 65 2 / 3 / 4 / 5
11D-XXS09NX3KV 9 28 70 2 / 3 / 4 / 5
11D-XXS12NX3KV 12 21 70 2 / 3 / 4 / 5
11D-XXS15NX3KV 15 16 70 2 / 3 / 4
11D-XXS24NX3KV 24 10 70 2 / 3 / 4
11D-XXD03NX3KV ±3.3 ±38 65 2 / 3
11D-XXD05NX3KV ±5 ±25 65 2 / 3
11D-XXD09NX3KV ±9 ±14 70 2 / 3
11D-XXD12NX3KV ±12 ±10 70 2 / 3
11D-XXD15NX3KV ±15 ±8 70 2 / 3
11D-XXD24NX3KV ±24 ±5 70 2 / 3

Note:
1. "XX" Is Input Voltage: 03 = 3.3Vdc, 05 = 5Vdc, 09 = 9Vdc, 12 = 12Vdc, 15 = 15Vdc, 24 = 24Vdc
2. Over 15V. 24V input voltage using the 1/2/3/4 Package.
3. The input voltage increases, there will be an increase in efficiency.


Input Specifications



Parameters Conditions Min Typ Max Units
Voltage Tolerance Vo, Io Nom     ±10 %
Filter Capacitor



Output Specifications



Parameters Conditions Min Typ Max Units
Voltage Tolerance 100% full load     ±5 %
Short Circuit Protection Short Term     1 Sec
Line Regulation For 1.0% OF Vin   1.2   %
Load Regulation 3.3V, 5V
(10% To 100% F.L)
    15 %
Load Regulation 9V, 12V, 15V, 24V
(10% To 100% F.L)
    10 %
Ripple & Noise BW = DC To 20MHz     100 mVp-p
Transient Response Setting Time 50% load step change   350   us



General Specifications



Parameters Conditions Min Typ Max Units
Isolation Resistance 500Vdc 1000
Switching Frequency Full load, nominalinput   100   KHz
Operating Temperature   -40   +85
Humidity Non Condensing     95 %
Cooling Free air Convection
Case Material DAP
MTBF MIL-HDBK-217F @25℃ 3500000     Hours
Weight Package 1 / 2 / 3 / 4 / 5 1.5 / 1.5 / 1.9 / 1.9 / 1.1 g
Dimensions Package 1 11.50 x 6.00 x 10.00 mm
Dimensions Package 2 12.70 x 10.16 x 6.80 mm
Dimensions Package 3 12.70 x 10.16 x 7.50 mm
Dimensions Package 4 11.50 x 7.50 x 10.00 mm
Dimensions Package 5 11.50 x 6.0 x 7.50 mm



 Files Download        11D-3KV-Series.pdf


Certification
