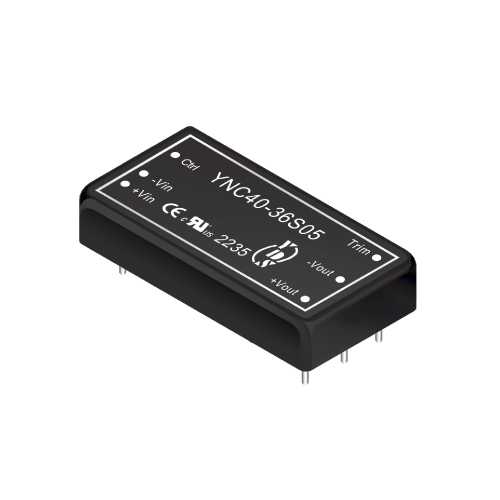

8:1寬輸入 40瓦 2.25KV隔離電壓 DC-DC電源轉換器

功能&特點

• 40瓦 DIL 包裝。

• 寬輸入8:1電壓範圍。

• 效率高達91%。

• 穩壓輸出類型。

• 無需最小負載。

• 過功率與短路保護。

• 過溫保護。

• 操作環境溫度:-40°C 至 +60°C。

• 符合UL94V-0規範包裝材質。

• 符合國際安規UL/cUL/IEC/EN 62368-1認證, CB-Report, CE Marking。

• 通過EMI標準 EN55032:2015認證。

• 通過EMS標準 EN55035:2017認證。

• 通過EMC標準Canadian ICES-003 issue7(2020)認證。

• 通過EMC標準47CFR FCC Part 15 subpart B認證。

---

Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified

Part Number	Input Voltage Range	Input Current		Output Voltage	Output Current	Efficiency (@36Vin)	Maximum Capacitor Load
		No-Load	Full Load
	Vdc	(mA TYP)	(mA TYP)	Vdc	mA(TYP)	%(TYP)	μF
YNC40-36S05	9-75	8	1235	5	8000	90	13600
YNC40-36S12	9-75	8	1221	12	3333	91	2400
YNC40-36S15	9-75	8	1221	15	2667	91	1500
YNC40-36S24	9-75	8	1221	24	1667	91	600
YNC40-36S48	9-75	8	1221	48	833	91	120
YNC40-36D12	9-75	8	1221	±12	±1667	91	±1200
YNC40-36D15	9-75	8	1221	±15	±1333	91	±800

Input Specifications

Parameters	Conditions		Min	Typ	Max	Units
Input Voltage			9	36	75	Vdc
Input Surge Voltage (100 ms max.)			-0.7		100	Vdc
Start-up Voltage					9	Vdc
Under Voltage Shutdown				7.5		Vdc
Start-up Time	Constant Resistive Load, Nominal Vin	Power-up		35		ms
		Remote ON/OFF		35
Input Filter	All Models		Internal Pi type
Remote ON/OFF (Ctrl PIN Refer To –Vin PIN)	Positive Logic (Standard)	DC/DC ON	Open or 3.5 Vdc – 12 Vdc
		DC/DC OFF	Short or 0 Vdc – 1.2 Vdc
	Input Current of Ctrl PIN		-0.5		+0.5	mA
	Remote Off Input Current			3

Output Specifications

Parameters	Conditions		Min	Typ	Max	Units
Voltage Tolerance	100% Load		-2		+2	%
Line Regulation	Vin(min) to Vin(max) @100% Load		-0.2		+0.2	%
Load Regulation	0% Load to 100% Load		-0.5		+0.5	%
Ripple & Noise (BW=20MHz)	With an 1uF MLCC	5Vout			100	mVp-p
		12Vout			150
		15Vout			150
		24Vout			150
		48Vout			200
Transient Response Setting Time	25% Load Step Change			350	650	us
Transient Response Deviation	25% load step change		-5	±3	+5	%
Temperature Coefficient			-0.02		+0.02	%/℃
Voltage Adjustability	% of Vout		-10		+10	%
Output Power Protection	% of Io, Hiccup mode, Auto-recovery		115	150	185	%
Short Circuit Protection	Continuous [Hiccup Mode], Auto-Recovery
Over Voltage Protection	5Vout			6.2		Vdc
	12Vout, ±12Vout			15
	15Vout, ±15Vout			18
	24Vout			30
	48Vout			60

General Specifications

Parameters	Conditions		Min	Typ	Max	Units
Isolation Voltage	Input to Output (60sec)		2250			Vdc
	Input (Output) to Case (60sec)		1000			Vdc
Isolation Resistance	500Vdc		1000			MΩ
Isolation Capacitance	100kHz, 1V				2200	pF
Switching Frequency	Full Load, Nominal Input	5Vout, 48Vout		185		KHz
		Other		230
Operating Ambient Temperature (Power Derating See Derating Graph)	Nominal Vin, 100% Load	YNC40-36S05	-40		60	℃
		YNC40-36S12, YNC40-36S15, YNC40-36S24, YNC40-36S48, YNC40-36D12, YNC40-36D15			65
Thermal Impedance	20LFM			10		℃/W
	100LFM			8.8
	200LFM			6.8
	400LFM			4.9
Maximum Case Temperature					105	℃
Over Temperature Protection	Case temperature			115		℃
Storage Temperature			-55		125	℃
Humidity	Non Condensing		5		95	%
Cooling	Natural Convection
Case Material	Copper
Potting Material	Silicone (UL94-V0)
MTBF	MIL-HDBK-217F@25℃ (calculated)			4.15x105		Hours
Weight				50		g
Dimensions			50.8 x 25.4 x 11.6			mm

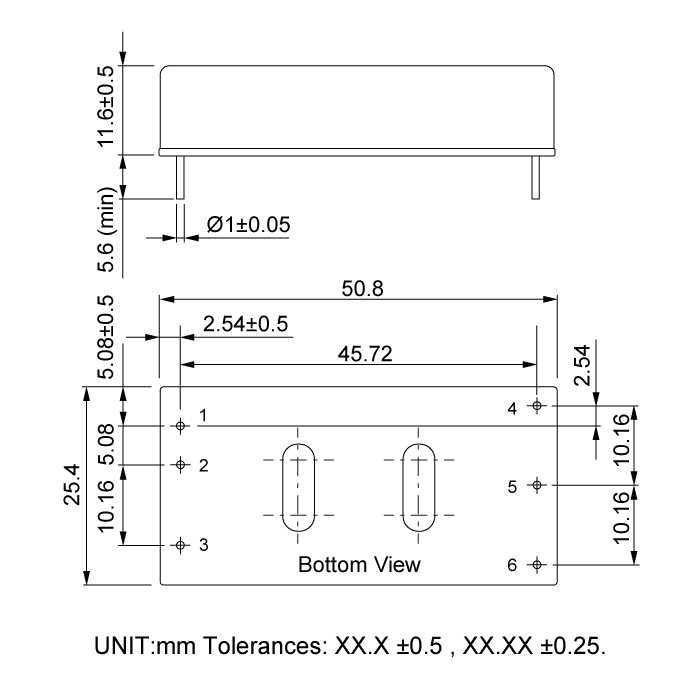

Dimension

 Files Download       YNC40-Series.pdf

Certification
