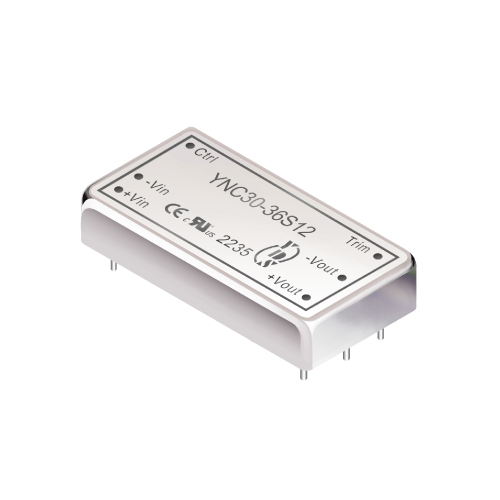

8:1寬輸入 30瓦 1.6KV隔離電壓 DC-DC電源轉換器

狀態:
數量:
  • YNC30 系列
  • YDS
功能&特點


  • 30瓦 DIL 包裝。

  • 寬輸入8:1電壓範圍。

  • 效率高達91%。

  • 穩壓輸出類型。

  • 無需最小負載。

  • 過功率與短路保護。

  • 過溫保護。

  • 操作環境溫度:-40°C 至 +70°C。

  • 符合UL94V-0規範包裝材質。

  • 100%高溫預燒測試。

  • 產品保固3年。




Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified



Part Number Input Voltage
Range
Input Current Output Voltage Output Current Efficiency
(@36Vin)
Maximum
Capacitor Load
No-Load Full Load
Vdc (mA TYP) (mA TYP) Vdc mA(TYP) %(TYP) μF
YNC30-36S05 9-75 10 916 5 6000 91 10200
YNC30-36S12 9-75 10 916 12 2500 91 1800
YNC30-36S15 9-75 10 916 15 2000 91 1125
YNC30-36S24 9-75 10 916 24 1250 91 450
YNC30-36D12 9-75 10 916 ±12 ±1250 91 ±900
YNC30-36D15 9-75 10 916 ±15 ±1000 91 ±600



Input Specifications



Parameters Conditions Min Typ Max Units
Input Voltage   9 36 75 Vdc
Input Surge Voltage
(100 ms max.)
  -0.7   100 Vdc
Start-up Voltage       9 Vdc
Under Voltage Shutdown     7.5   Vdc
Start-up Time Constant Resistive Load, Nominal Vin Power-up   35   ms
Remote ON/OFF   35
Input Filter All Models Internal Pi type
Remote ON/OFF
(Ctrl PIN Refer To –Vin PIN)
Positive Logic
(Standard)
DC/DC ON Open or 3.5 Vdc – 12 Vdc
DC/DC OFF Short or 0 Vdc – 1.2 Vdc
Input Current of Ctrl PIN -0.5   +0.5 mA
Remote Off Input Current   3



Output Specifications



Parameters Conditions Min Typ Max Units
Voltage Tolerance 100% Load -2   +2 %
Line Regulation Vin(min) to Vin(max) @100% Load -0.5   +0.5 %
Load Regulation 0% Load to 100% Load -0.5   +0.5 %
Ripple & Noise
(BW=20MHz)
With an 1uF MLCC 5Vout     100 mVp-p
12Vout, ±12Vout     120
15Vout, ±15Vout     150
24Vout     150
Transient Response Setting Time 25% Load Step Change   350 500 us
Transient Response Deviation 25% load step change -5 ±3 +5 %
Temperature Coefficient   -0.02   +0.02 %/℃
Voltage Adjustability % of Vout -10   +10 %
Output Power Protection % of Io, Hiccup mode,
Auto-recovery
115 150 190 %
Short Circuit Protection Continuous [Hiccup Mode], Auto-Recovery
Over Voltage Protection 5Vout   6.2   Vdc
12Vout, ±12Vout   15
15Vout, ±15Vout   18
24Vout   30



General Specifications


Parameters Conditions Min Typ Max Units
Isolation Voltage Input to Output (60sec) 1600     Vdc
Input (Output) to Case (60sec) 1000     Vdc
Isolation Resistance 500Vdc 1000
Isolation Capacitance 100kHz, 1V     2200 pF
Switching Frequency Full Load,
Nominal Input
5Vout   180   KHz
Other   210
Operating Ambient Temperature
(Power Derating See Derating Graph)
Nominal Vin,
100% Load
YNC30-36S05,
YNC30-36S12,
YNC30-36S15,
YNC30-36S24,
YNC30-36D12,
YNC30-36D15
-40   70
Thermal Impedance 20LFM   11.6   ℃/W
100LFM   10.5
200LFM   8.7
400LFM   5.1
Maximum Case Temperature       105
Over Temperature Protection Case temperature   115
Storage Temperature   -55   125
Humidity Non Condensing 5   95 %
Cooling Natural Convection
Case Material Copper
Potting Material Silicone (UL94-V0)
MTBF MIL-HDBK-217F@25℃ (calculated)   5.73X105   Hours
Weight     50   g

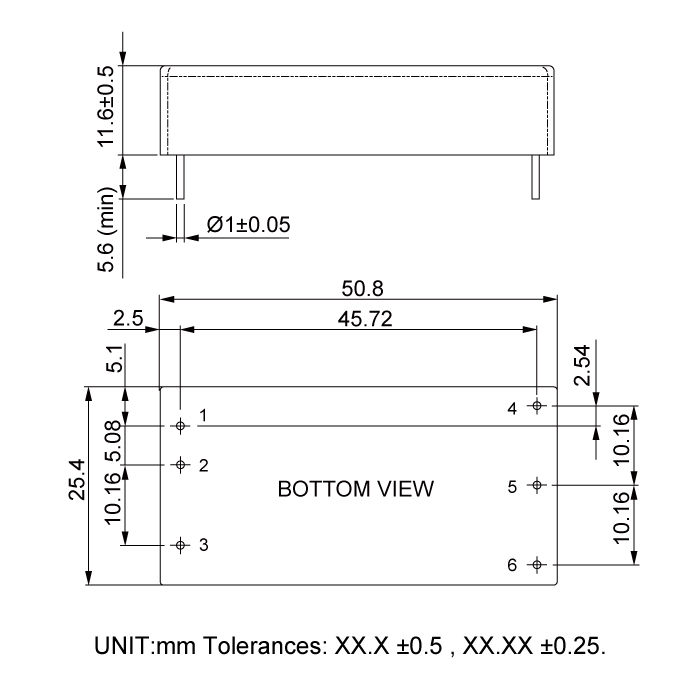

Dimensions   50.8 x 25.4 x 11.6 mm
