60瓦 1.6KV隔離電壓 4:1寬輸入 DIP 直流對直流電源轉換器

狀態:
數量:
  • YNB60 系列
  • YDS
功能&特點


  • 60瓦 2" x1 " DIL 包裝。

  • 寬輸入4:1電壓範圍。

  • 效率高達92%。

  • 1600Vdc隔離電壓。

  • 穩壓輸出類型。

  • DIL封裝。

  • 短路與過壓保護。

  • 操作環境溫度:-40°C 至 +76°C。

  • 符合UL94V-0規範包裝材質。

  • 100%高溫預燒測試。

  • 產品保固3年。





Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified


Part Number Input Voltage Range Input Current Output Voltage Output Current Efficiency Maximum
Capacitor  Load
No-Load Full Load
Vdc mA (typ) mA (typ) Vdc mA (typ) % (typ) uF
YNB60-24S05 9-36 15 2747 5 12000 91 20400
YNB60-24S12 9-36 15 2717 12 5000 92 3600
YNB60-24S15 9-36 15 2717 15 4000 92 2400
YNB60-24S24 9-36 15 2747 24 2500 91 900
YNB60-48S05 18-75 10 1374 5 12000 91 20400
YNB60-48S12 18-75 10 1359 12 5000 92 3600
YNB60-48S15 18-75 10 1359 15 4000 92 2400
YNB60-48S24 18-75 10 1374 24 2500 91 900



Input Specifications



Parameters Conditions Min Typ Max Units
Input Voltage 24V Models 9   36 Vdc
48V Models 18   75
Input Surge Voltage
(100 ms max.)
24V Models -0.7   50
48V Models -0.7   100
Start up Voltage 24V Models     9 Vdc
48V Models     18
Under Voltage Shutdown 24V Models   7.5   Vdc
48V Models   16
Start up Time Constant Resistive Load, Nominal Vin Power-up   30   ms
Remote ON/OFF   30
Input Filter All Models Internal Pi type
Remote ON/OFF
Ctrl PIN Refer T o Vin PIN)
Positive Logic DC/DC ON Open or 3.5 Vdc-12 Vdc
DC/DC OFF Short or 0 Vdc-1.2 Vdc
Input Current O f Ctrl PIN -0.5   0.5 mA
Remote Off Input Current   3

Output Specifications


Parameters Conditions Min Typ Max Units
Voltage Tolerance 100% load -2   +2 %
Line Regulation Vin(min) to Vin(max) @100% Load -0.2   +0.2 %
Load Regulation 0% Load to 100% Load -0.5   +0.5 %
Ripple & Noise
(BW=20MHz)
With an 1uF MLCC
and a 10uF tantalum Capacitor
5Vout     100 mVp-p
12Vout     150
15Vout     150
24Vout     150
Transient Response Setting Time 25% Load Step Change   350 500 us
Transient Response Deviation 25% Load Step Change -5 ±3 +5 %
Temperature Coefficient   -0.02   +0.02 %/℃
Voltage Adjustability % of Vout -10   +10 %
Output Power Protection % of Io, Hiccup mode,
Auto-recovery
120 150 180 %
Short Circuit Protection Continuous [Hiccup Mode] ,Auto-Recovery
Over Voltage Protection 5Vout   6.2   Vdc
12Vout   15
15Vout   18
24Vout   30


General Specifications


Parameters Conditions Min Typ Max Units
Isolation Voltage Input To Output (60sec) 1600     Vdc
Input(Output) To Case (60sec) 1000     Vdc
Isolation Resistance 500Vdc 1000
Isolation Capacitance 100KHz,1V     2200 pF
Switching Frequency Full Load,
Nominal Input
  280   KHz
Operating Ambient Temperature
(Power Derating See Derating Graph)
Nominal Vin,
100% Load
YNB60-24S05,
YNB60-24S24,
YNB60-48S05,
YNB60-48S24
-40   45.7
YNB60-24S12,
YNB60-24S15,
YNB60-48S12,
YNB60-48S15
  52.8
Nominal Vin,
100% Load

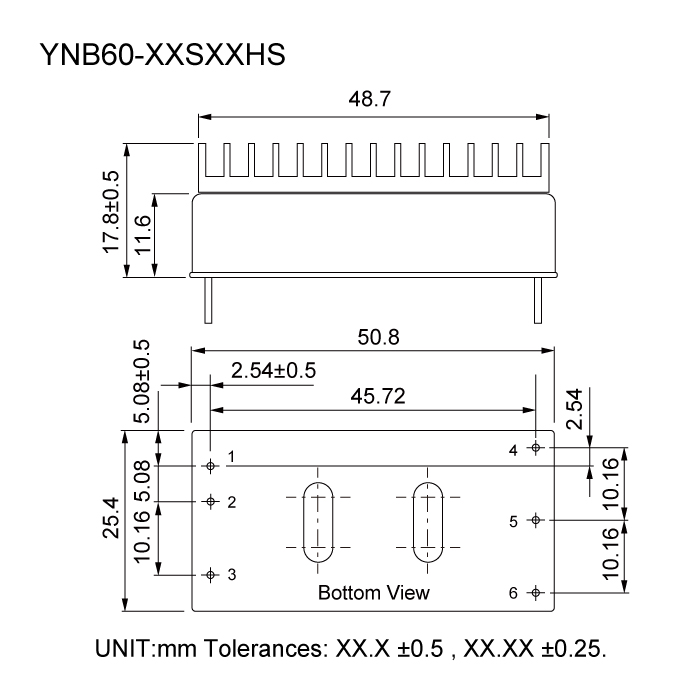

(With HS Heatsink)
YNB60-24S05HS,
YNB60-24S24HS,
YNB60-48S05HS,
YNB60-48S24HS
-40   56.9
YNB60-24S12HS,
YNB60-24S15HS,
YNB60-48S12HS,
YNB60-48S15HS
  62.7
Nominal Vin,
100% Load

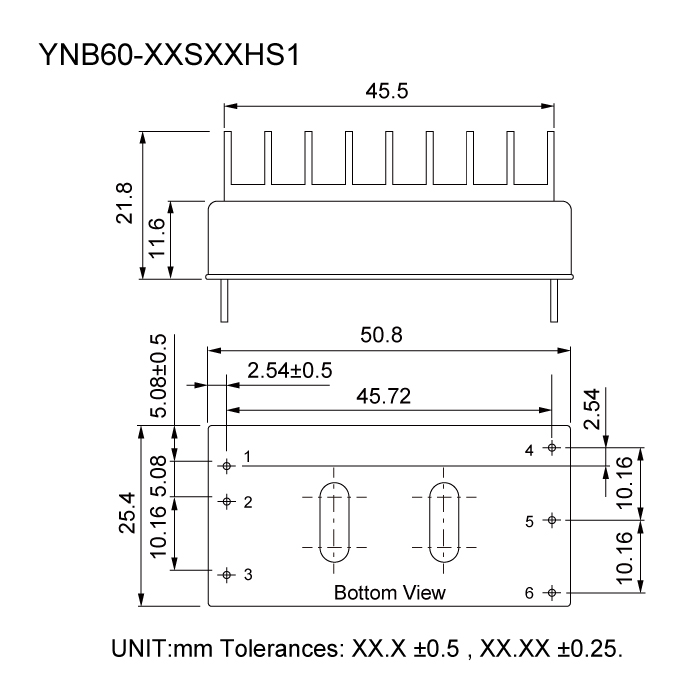

(With HS1 Heatsink)
YNB60-24S05HS1,
YNB60-24S24HS1,
YNB60-48S05HS1,
YNB60-48S24HS1
-40   68.2
YNB60-24S12HS1,
YNB60-24S15HS1,
YNB60-48S12HS1,
YNB60-48S15HS1
  72.7
Maximum Case Temperature       105
Over Temperature Protection Case temperature   115
Storage Temperature   -55   125
Humidity Non Condensing 5   95 %
Cooling Natural Convection
Case Material Copper
Potting Material Silicone (UL94-V0)
MTBF MIL-HDBK-217F@25℃ (calculated)   2.59X105   Hours
Weight     48   g

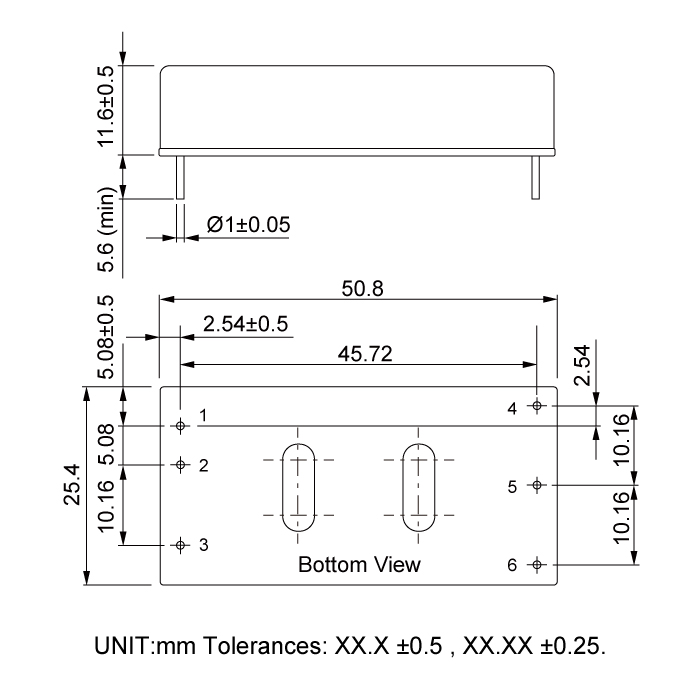

Dimensions 50.8 x 25.4 x 11.6 mm



 Files Download   YNB60 Series.pdf
