經濟型 2瓦 1.5KV~3KV隔離電壓 SMD DC-DC電源轉換器

功能&特點

• 14PIN SMD 包裝。

• 空載輸入電流低至5mA。

• 連續短路保護。

• 效率高達89%。

• 非穩壓輸出類型。

• 1.5KVDC~3KVDC 隔離電壓。

• 操作環境溫度：-40°C 至 +105°C。

• 工業標準引腳。

• 設計參考IEC62368，UL62368，EN62368。

---

Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified

Part Number	Output Voltage	Output Current	Efficiency	Capacitive Load(μF)	Package Style
	Vdc	mA	%TYP	Max.
13DSC-12S05NXP2(H3)	5	400	85	2400	1/2/3
13DSC-12S09NXP2(H3)	9	223	87	820	1/2/3
13DSC-12S12NXP2(H3)	12	167	87	470	1/2/3
13DSC-12S15NXP2(H3)	15	133	88	220	1/2/3
13DSC-12S24NXP2(H3)	24	84	89	100	3
13DSC-15S05NXP2(H3)	5	400	85	2400	1/2/3
13DSC-15S09NXP2(H3)	9	223	87	820	1/2/3
13DSC-15S12NXP2(H3)	12	167	87	470	1/2/3
13DSC-15S15NXP2(H3)	15	133	88	220	1/2/3
13DSC-15S24NXP2(H3)	24	84	89	100	3
13DSC-24S05NXP2(H3)	5	400	85	2400	3
13DSC-24S09NXP2(H3)	9	223	87	820	3
13DSC-24S12NXP2(H3)	12	167	87	470	3
13DSC-24S15NXP2(H3)	15	133	88	220	3
13DSC-24S24NXP2(H3)	24	84	89	100	3

Note：
1:No suffix is standard isolation (1.5KVDC) e.g, 13DSC-15S05NP2, *add suffix “H3” for 3KVDC isolation,

   e.g, 13DSC-12S09NP2H3, 13DSC-12S12NP2H3.

   X = 1 or 2 or 3 for package, No suffix X package1, When X=2, package2, and so on,

   e.g,13DSC-15S05N2P2,13DSC-24S12N3P2H3.

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Range	Vo,Io Nom		±10		%
Filter	Capacitor

Output Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance	100% full load			±5	%
Short Circuit Protection	Continuous
Line Regulation	For 1.0% OF Vin		1.2		%
Load Regulation	5V(10% To 100% F.L)		8	15	%
	9V(10% To 100% F.L)		6	10	%
	12V(10% To 100% F.L)		5	10	%
	15V(10% To 100% F.L)		4	10	%
	24V(10% To 100% F.L)		3	10	%
Ripple & Noise	BW=DC To 20MHz		75	150	mVp-p

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Isolation Resistance	500Vdc	1000			MΩ
Isolation Capacitance	Input-output,100KHz/0.1V		20		pF
Switching Frequency	Full load, nominal input		250		KHz
Operation Temperature		-40		+105	℃
Storage Temperature		-55		+125	℃
Humidity	Non Condensing			95	%
Cooling	Free air Convection
Case material	DAP
MTBF	MIL-HDBK-217F @25℃	3500000			Hours
Weight	Package 1/2/3	1.2/1.2/1.28			g
Dimensions	Package 1	12.7x7.6x6.25			mm
	Package 2	12.7x7.6x6.25			mm
	Package 3	12.8x10.8x6.9			mm

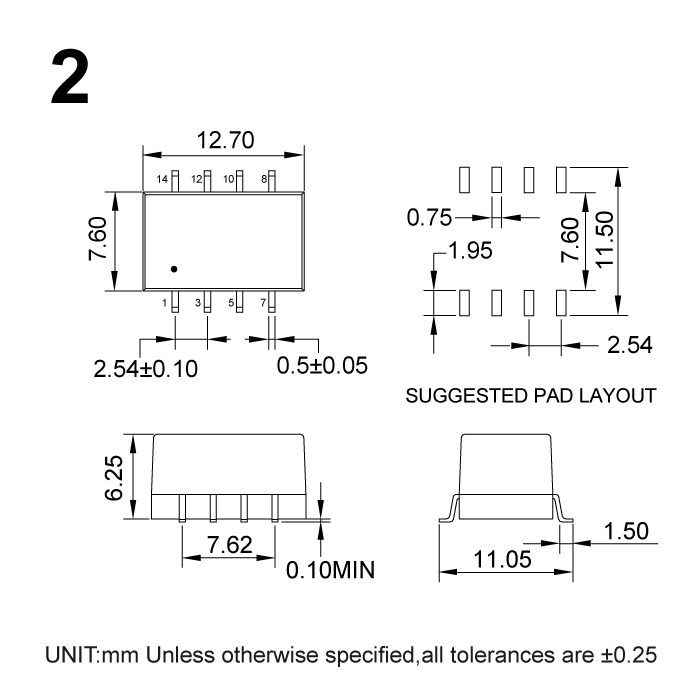

Dimension

 Files Download    13DSC-2W Series.pdf
