GA10G系列 10瓦 3KVac隔離電壓 穩壓輸出 交流對直流綠能電源轉換器

功能&特點

• 通用輸入電壓 85~265VAC。

• 效率高達 82%。

• 短路/過載/過壓保護。

• 效能符合 DOE6。

• 無負載功耗<0.1W。

• 產品保固3年。

• 符合RoHS認證。

---

Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified

Part Number	Output Wattage	Output Voltage	Output Current	Ripple & Noise	Efficiency
	(W)	(VDC)	(mA)	(mV) max	(TYP %)
GA10G-S05-X	5	5	2000	200	76
GA10G-S12-X	10.08	12	840	200	81
GA10G-S15-X	10.05	15	670	200	81
GA10G-S24-X	10.08	24	420	200	82

Note:
X= ONE digit representing the output power (W) The output power is rising in steps of 1W from 1W to the max. output Power; When the output power is maximum power, X is omitted. E.g:5W=GA10G-S05-5,GA10G-S15-5  10W=GA10G-S05,GA10G-S15

Input Specifications

Parameters	Conditions		Min	Typ	Max	Units
Rated Input Voltage	Vo, Io nom			100 ~ 240		Vac
Voltage Range	Vo, Io nom	AC in	85		265	Vac
		DC in	100		370	Vdc
Line Frequency	Vi nom, Io nom		47		63	Hz
Inrush Current	Io nom	Vi: 115VAC			30	A
		Vi: 230VAC			60	A
Leakage Current					0.25	mA
Input Current (Full load)	250mA TYP.(115Vac) 150mA TYP.(230Vac)
External Fuse (recommend)	VDE/UL/CCC FUSE 2.5A/250V (Slow blow).

Output Specifications

Parameters	Conditions	Min	Typ	Max	Units
Output Voltage Accuracy	Vi nom, Io nom			±5	%
Minimum Load	Vi nom	0			%
Line Regulation	Io nom, Vi min....Vi max		± 2.0		%
Load Regulation	Vi nom, Io min....Io nom		± 3.0		%
Protection	Over Load	Above 115% rated output power
		Protection type: Recovers automatically after fault condition is removed
	Over Voltage	120%-150% rated output Voltage
		Protection type: Zener diode clamp
	Short circuit	Recovers automatically after fault condition is removed

Note:
Ripple & noise is measured by using 20 MHz bandwidth, measured with a 47uf paralleled with a high-frequency 0.47uf capacitor arcoss each output by full load.

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Switching Frequency	Vi nom, Io nom		65		KHz
Isolation Voltage	Input / Output	3KVac / 5mA / 5Secs
Isolation Resistance	Input / Output, @500 Vdc	100			MΩ
Operating Temperature	Refer to Temperature Derating Graph	-25		+70	℃
Storage Temperature	Non Operational	-40		+85	℃
Relative Humidity	Vi nom,Io nom			95	% RH
Safety Standards	Design refer to EN62368-1
EMI Conduction & Radiation	Design refer to EN55032
EMS Immunity	Design refer to EN55024
Dimension	L50.80x W25.40 x H17.02mm
Cooling	Free air convection

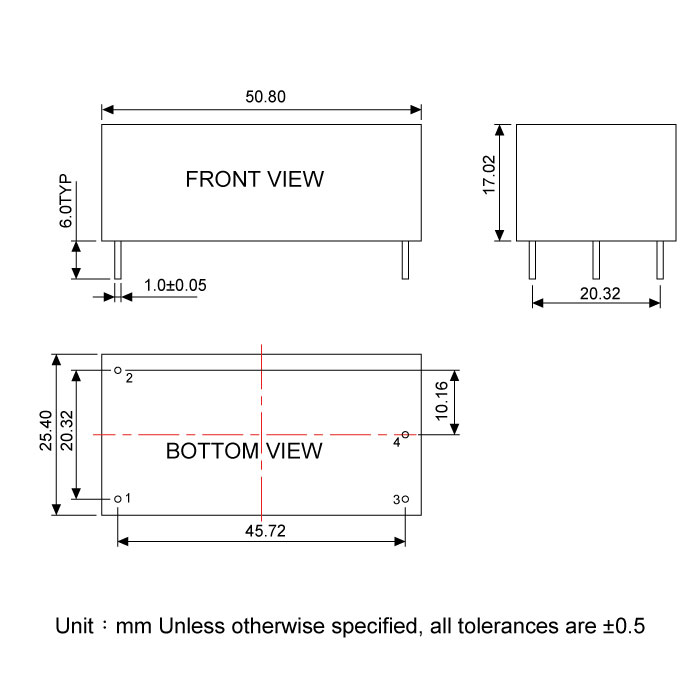

Dimension

 Files Download      GA10G-Series.pdf

Certification
