95D-B3 系列 20瓦 1.5KV隔離電壓 2:1寬輸入 直流對直流電源轉換器

功能&特點

• 20瓦 DIL 包裝。

• 寬輸入2:1電壓範圍。

• 100%高溫預燒測試。

• 效率高達86%。

• 可提供客製化。

• 具備遙控開關功能。

• 符合UL94V-0規範包裝材質。

• 操作環境溫度:-40°C 至 +82℃。

• 產品保固3年。

---

Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified

Part Number	Input Voltage	Input Current		Output Voltage	Output Current	Efficiency	Capacitor Load
	Vdc	No-Load (mA TYP)	Full Load (mA TYP)	Vdc	Full Load (mA)	%TYP	uF MAX
95D-12S03B3NL	9-18	70	1800	3.3	5500	84	1500
95D-12S05B3NL	9-18	70	1937	5	4000	86	1500
95D-12S12B3NL	9-18	30	1941	12	1670	86	120
95D-12S15B3NL	9-18	30	1933	15	1330	86	120
95D-12D05B3NL	9-18	70	1984	±5	±2000	84	±1000
95D-12D12B3NL	9-18	30	1964	±12	±835	85	±120
95D-12D15B3NL	9-18	30	1955	±15	±665	85	±120
95D-24S03B3NL	18-36	70	900	3.3	5500	84	3300
95D-24S05B3NL	18-36	70	968	5	4000	86	3300
95D-24S12B3NL	18-36	30	970	12	1670	86	330
95D-24S15B3NL	18-36	30	966	15	1330	86	330
95D-24D05B3NL	18-36	70	992	±5	±2000	84	±2000
95D-24D12B3NL	18-36	30	982	±12	±835	85	±330
95D-24D15B3NL	18-36	30	977	±15	±665	85	±330
95D-48S03B3NL	36-75	40	450	3.3	5500	84	5600
95D-48S05B3NL	36-75	40	484	5	4000	86	5600
95D-48S12B3NL	36-75	30	485	12	1670	86	680
95D-48S15B3NL	36-75	30	483	15	1330	86	680
95D-48D05B3NL	36-75	40	496	±5	±2000	84	±3300
95D-48D12B3NL	36-75	30	491	±12	±835	85	±220
95D-48D15B3NL	36-75	30	488	±15	±665	85	±220

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Types				2:1
Filter	Pi TYPE

Output Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance	Full load@Vin(nom.)			±2	%
Short Circuit Protection	Hiccup, automatic recovery
Line Regulation				±0.5	%
Load Regulation	Single Dual (Balance Load)			±0.5 ±1.0	%
Cross Regulation	Dual (25% to 100% Load)			±5	%
Ripple & Noise	Output:3-15V TYPES BW=DC To 20MHz			100	mVp-p
	Output >15V TYPES BW=DC To 20MHz			1% of Vout	mVp-p
Transient response setting time	25% load step change		300		us

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Isolation Voltage			1500		Vdc
Isolation Resistance	500Vdc	1000			MΩ
Switching Frequency			300		KHz
Operating Temperature	With derating	-40		+82	℃
Storage Temperature		-55		+125	℃
Humidity	Non Condensing	5		95	%
Cooling	Natural Convection (20LFM)
Case Material	Nickel coated copper with plastic base
MTBF	MIL-HDBK-217F@25℃	659000			Hours
Weight		32.6			g
Dimensions		51.0 x 25.4 x 11.5			mm

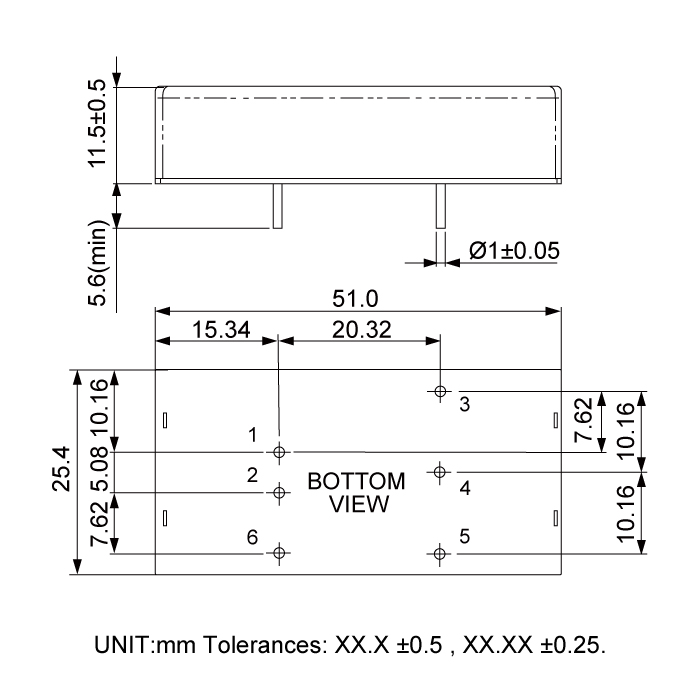

Dimension
