GB60A 系列
YDS
通用輸入電壓 90~264VAC。
效率高達88%(標準值)。
短路/過載/過壓保護。
內置輸入濾波器。
產品保固3年。
符合RoHS認證。
Part Number | Output Wattage | Output Voltage | Output Current | Ripple & Noise | Efficiency |
---|---|---|---|---|---|
(W) | V | (mA) | (mV) max(note) | %(TYP) | |
GB60A-S03 | 26.4 | 3.3 | 8000 | 100 | 70 |
GB60A-S05 | 40.0 | 5 | 8000 | 100 | 80 |
GB60A-S09 | 60.0 | 9 | 6670 | 100 | 81 |
GB60A-S12 | 60.0 | 12 | 5000 | 150 | 85 |
GB60A-S15 | 60.0 | 15 | 4000 | 150 | 85 |
GB60A-S16 | 60.0 | 16 | 3750 | 150 | 85 |
GB60A-S24 | 60.0 | 24 | 2500 | 240 | 87 |
GB60A-S27 | 60.0 | 27 | 2200 | 240 | 87 |
GB60A-S36 | 60.0 | 36 | 1670 | 240 | 87 |
GB60A-S48 | 60.0 | 48 | 1250 | 240 | 88 |
GB60A-S12-E | 60.0 | 12 | 5000 | 150 | 85 |
GB60A-S12-G | 60.0 | 12 | 5000 | 150 | 85 |
Parameters | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|
Rated Input Voltage | Vo,Io nom | 100 ~ 240 | Vac | ||
Voltage Range | Vo,Io nom | 90 | 264 | Vac | |
Frequency | 47 | 50/60 | 63 | Hz | |
Inrush Current | At 100Vac | 20 | A | ||
At 240Vac | 40 | A | |||
Input Fuse | VDE/UL/CCC FUSE 3.15A/250V |
Parameters | Conditions | Min | Typ | Max | Units | |
---|---|---|---|---|---|---|
Output Voltage Accuracy | Vi nom, Io nom | 3.3V,5V Models | ±3 | % | ||
12….48V Models | ±2 | % | ||||
Minimum Load | Vi nom | ±1 | % | |||
Line Regulation | Io nom, Vi min…Vi max | ±1 | % | |||
Load Regulation | Vi nom, Io min…Io nom | ±2 | % | |||
Protection | Over Load | 115% -150% rated output power | ||||
Protection type: Recovers automatically after fault condition is removed | ||||||
Over Voltage | 120%-150% rated output Voltage | |||||
Protection type: Shut off o/p voltage, re-power on to recover | ||||||
Short circuit | Recovers automatically after fault condition is removed |
Note:
Ripple & noise is measured by using 20 MHz bandwidth, measured with a 47uf paralleled with a high-frequency 0.47uf capacitor across each output by full load.
Parameters | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|
Switching Frequency | Vi nom, Io nom | 65 | KHz | ||
Isolation Voltage | Input / Output | 3KVac / 5mA / 5Secs | |||
Isolation Resistance | Input / Output, @500 Vdc | 100 | MΩ | ||
Operating Temperature | Operating at Vi nom, Io nom | -20 | +70 | ℃ | |
Derating | Vi nom,Io nom+51 to 71℃ | 2 | %/℃ | ||
Storage Temperature | Non Operational | -40 | +85 | ℃ | |
Relative Humidity | Vi nom, Io nom | 95 | % RH | ||
Safety Standards | EN62368-1 approved | ||||
EMI Conduction & Radiation | Design refer to EN55032 | ||||
EMS Immunity | Design refer to EN55024 | ||||

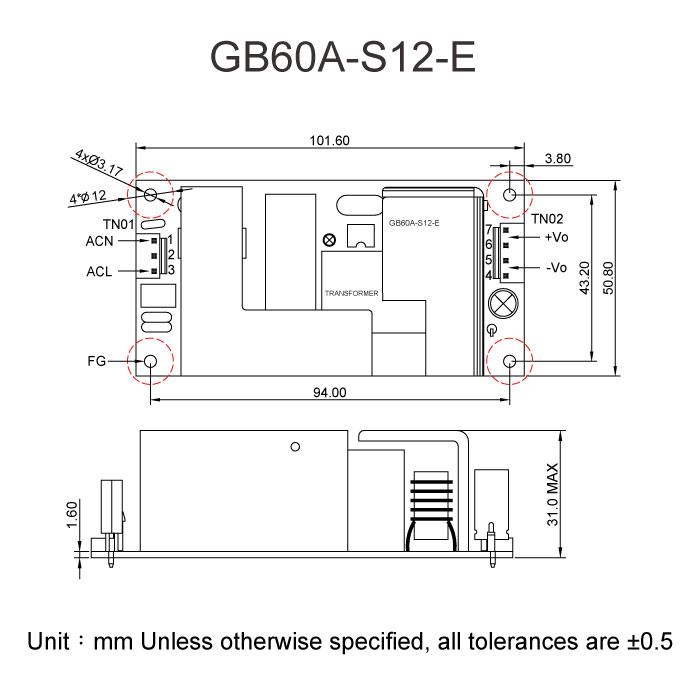

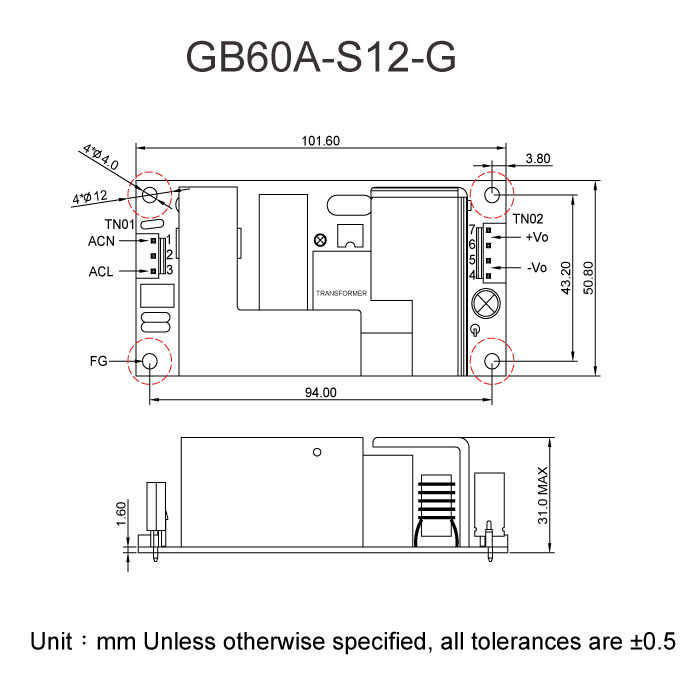

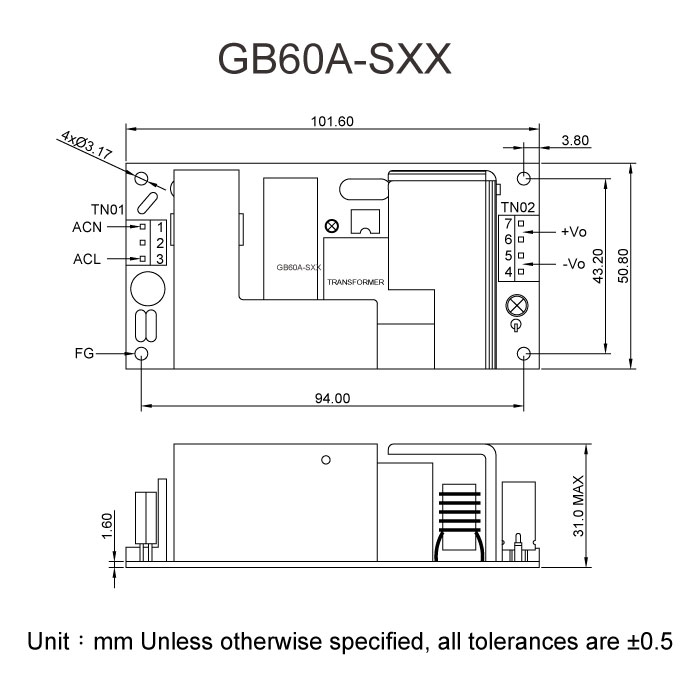

Dimension | L101.60 x W50.80 x H31.0 | ||||
Cooling | Free air convection |
Files Download GB60A-Series.pdf
