高效型 3瓦 7PIN SIP 1.5KV~6KV隔離電壓 DC-DC電源轉換器

功能&特點

• 7PIN SIP 包裝。

• 空載輸入電流低至8mA。

• 連續短路保護。

• 效率高達88%。

• 非穩壓輸出類型。

• 1.5KVDC ~6KVDC 隔離電壓。

• 工業標準引腳。

• 操作環境溫度：-40°C 至 +85°C。

• 設計參考IEC62368，UL62368，EN62368。



---

Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified

Part Number	Output Voltage	Output Current	Efficiency	Capacitive Load(μF)
	Vdc	mA	%TYP	Max.
12DC-12S05NP3(H3)	5	600	85	1000
12DC-12S12NP3(H3)	12	250	87	220
12DC-12S15NP3(H3)	15	200	88	220
12DC-12S24NP3(H3)	24	125	88	47
12DC-12D05NP3(H3)	±5	±300	86	±560
12DC-12D12NP3(H3)	±12	±125	86	±100
12DC-12D15NP3(H3)	±15	±100	88	±100
12DC-12D24NP3(H3)	±24	±63	88	±22
12DC-15S05NP3(H3)	5	600	85	1000
12DC-15S12NP3(H3)	12	250	87	220
12DC-15S15NP3(H3)	15	200	88	220
12DC-15S24NP3(H3)	24	125	88	47
12DC-15D05NP3(H3)	±5	±300	86	±560
12DC-15D12NP3(H3)	±12	±125	86	±100
12DC-15D15NP3(H3)	±15	±100	88	±100
12DC-15D24NP3(H3)	±24	±63	88	±22
12DC-24S05NP3(H3)	5	600	85	1000
12DC-24S12NP3(H3)	12	250	87	220
12DC-24S15NP3(H3)	15	200	88	220
12DC-24S24NP3(H3)	24	125	88	47
12DC-24D05NP3(H3)	±5	±300	86	±560
12DC-24D12NP3(H3)	±12	±125	86	±100
12DC-24D15NP3(H3)	±15	±100	88	±100
12DC-24D24NP3(H3)	±24	±63	88	±22

Note:
1: No suffix is standard isolation (1.5KVDC) e.g, 12DC-12S05NP3，

  *add suffix“H3” for 3KVDC isolation,*add suffix“H4” for 4KVDC isolation, *add suffix“H5” for 5.2KVDC isolation,

  *add suffix“H6” for 6KVDC isolation, e.g, 12DC-12S05NP3H3, 12DC-24D24NP3H6.

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Range	Vo,Io Nom		±10		%
Filter	Capacitor

Output Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance	100% full load			±5	%
Short Circuit Protection	Continuous
Line Regulation	For 1.0% OF Vin		1.2		%
Load Regulation	5V(10% To 100% F.L)		9	15	%
	12V(10% To 100% F.L)		7	10	%
	15V(10% To 100% F.L)		6	10	%
	24V(10% To 100% F.L)		5	10	%
Ripple & Noise	BW=DC To 20MHz		100	150	mVp-p

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Isolation Resistance	500Vdc	1000			MΩ
Isolation Capacitance	Input-output,100KHz/0.1V		20		pF
Switching Frequency	Full load, nominal input		250		KHz
Operating Temperature		-40		+85	℃
Storage Temperature		-55		+125	℃
Humidity	Non Condensing			95	%
Cooling	Free air Convection
Case material	DAP
MTBF	MIL-HDBK-217F @25℃	3500000			Hours
Weight			2.7		g
Dimensions		19.5 x 7.1 x 10.0			mm

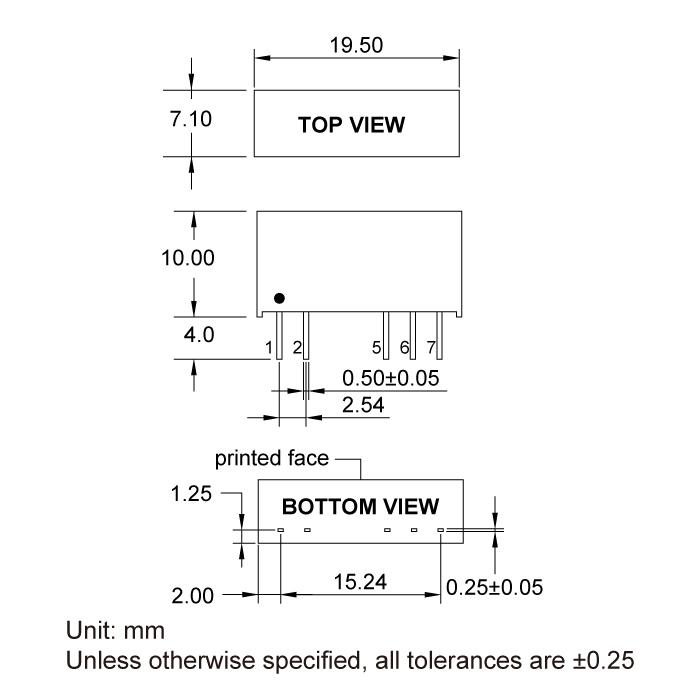

Dimension
