14DC-3W 系列
YDS
7PIN SIP 包裝。
空載輸入電流低至8mA。
連續短路保護。
效率高達88%。
非穩壓輸出類型。
1.5KVDC~ 3KVDC 隔離電壓。
操作環境溫度:-40°C 至 +85°C。
工業標準引腳。
設計參考IEC62368,UL62368,EN62368。
Part Number | Output Voltage | Output Current | Efficiency | Capacitive Load(μF) |
---|---|---|---|---|
Vdc | mA | %TYP | Max. | |
14DC-12S05NP3(H3) | 5 | 600 | 85 | 1000 |
14DC-12S12NP3(H3) | 12 | 250 | 87 | 220 |
14DC-12S15NP3(H3) | 15 | 200 | 88 | 220 |
14DC-12S24NP3(H3) | 24 | 125 | 88 | 47 |
14DC-12D05NP3(H3) | ±5 | ±300 | 86 | ±560 |
14DC-12D12NP3(H3) | ±12 | ±125 | 86 | ±100 |
14DC-12D15NP3(H3) | ±15 | ±100 | 88 | ±100 |
14DC-12D24NP3(H3) | ±24 | ±63 | 88 | ±22 |
14DC-15S05NP3(H3) | 5 | 600 | 85 | 1000 |
14DC-15S12NP3(H3) | 12 | 250 | 87 | 220 |
14DC-15S15NP3(H3) | 15 | 200 | 88 | 220 |
14DC-15S24NP3(H3) | 24 | 125 | 88 | 47 |
14DC-15D05NP3(H3) | ±5 | ±300 | 86 | ±560 |
14DC-15D12NP3(H3) | ±12 | ±125 | 86 | ±100 |
14DC-15D15NP3(H3) | ±15 | ±100 | 88 | ±100 |
14DC-15D24NP3(H3) | ±24 | ±63 | 88 | ±22 |
14DC-24S05NP3(H3) | 5 | 600 | 85 | 1000 |
14DC-24S12NP3(H3) | 12 | 250 | 87 | 220 |
14DC-24S15NP3(H3) | 15 | 200 | 88 | 220 |
14DC-24S24NP3(H3) | 24 | 125 | 88 | 47 |
14DC-24D05NP3(H3) | ±5 | ±300 | 86 | ±560 |
14DC-24D12NP3(H3) | ±12 | ±125 | 86 | ±100 |
14DC-24D15NP3(H3) | ±15 | ±100 | 88 | ±100 |
14DC-24D24NP3(H3) | ±24 | ±63 | 88 | ±22 |
Note:
1: No suffix is standard isolation (1.5KVDC) e.g, 14DC-12S05NP3,
*add suffix “H3” for 3KVDC isolation, e.g, 14DC-12S05NP3H3.
Input Specifications
Parameters | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|
Voltage Range | Vo,Io Nom | ±10 | % | ||
Filter | Capacitor |
Parameters | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|
Voltage Tolerance | 100% full load | ±5 | % | ||
Short Circuit Protection | Continuous | ||||
Line Regulation | For 1.0% OF Vin | 1.2 | % | ||
Load Regulation | 5V(10% To 100% F.L) | 9 | 15 | % | |
12V(10% To 100% F.L) | 7 | 10 | % | ||
15V(10% To 100% F.L) | 6 | 10 | % | ||
24V(10% To 100% F.L) | 5 | 10 | % | ||
Ripple & Noise | BW=DC To 20MHz | 100 | 150 | mVp-p |
Parameters | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|
Isolation Resistance | 500Vdc | 1000 | MΩ | ||
Isolation Capacitance | Input-output,100KHz/0.1V | 20 | pF | ||
Switching Frequency | Full load, nominal input | 250 | KHz | ||
Operation Temperature | -40 | +85 | ℃ | ||
Storage Temperature | -55 | +125 | ℃ | ||
Humidity | Non Condensing | 95 | % | ||
Cooling | Free air Convection | ||||
Case material | DAP | ||||
MTBF | MIL-HDBK-217F @25℃ | 3500000 | Hours | ||
Weight | 2.7 | g | |||

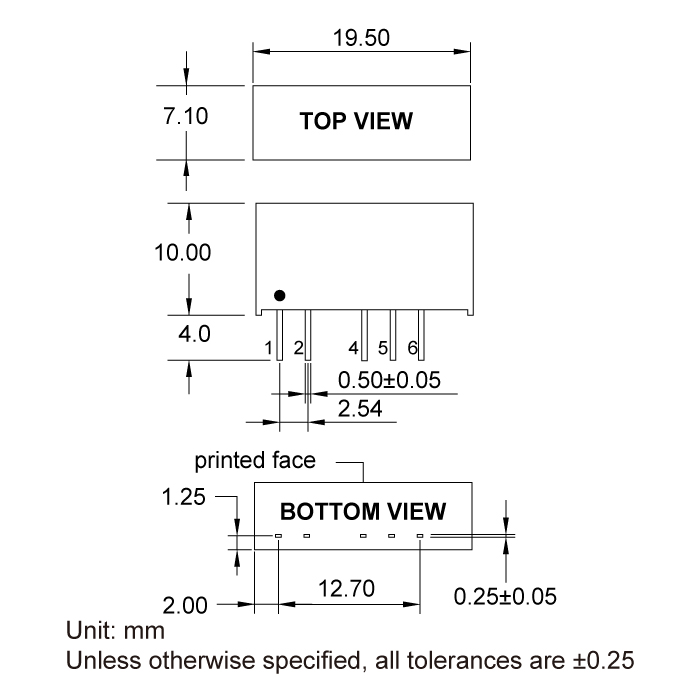

Dimensions | 19.5 x 7.1 x 10.0 | mm |
Files Download 14DC-3W-Series.pdf
