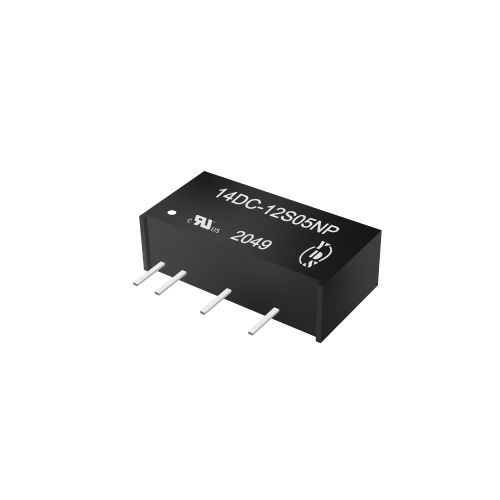

高效型 SIP7 1瓦 1.5KV~3KV隔離電壓 DC-DC電源轉換器

功能&特點

• 7PIN SIP 包裝。

• 空載輸入電流低至5mA。

• 連續短路保護。

• 效率高達87%。

• 非穩壓輸出類型。

• 1.5KVDC~3KVDC 隔離電壓。

• 操作環境溫度：-40°C 至 +105°C。


• 工業標準引腳。

• 符合國際安規UL/cUL/IEC/EN 62368-1認證, CB-Report。

---

Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified

Part Number	Output Voltage	Output Current	Efficiency	Capacitive Load(μF)
	Vdc	mA	%TYP	Max.
14DC-05S03N(P)(H3)	3.3	303	76	2400
14DC-05S05N(P)(H3)	5	200	82	2400
14DC-05S09N(P)(H3)	9	112	83	1000
14DC-05S12N(P)(H3)	12	84	84	470
14DC-05S15N(P)(H3)	15	67	84	330
14DC-05S24N(P)(H3)	24	42	85	100
14DC-05D03N(P)(H3)	±3.3	±151	76	±1200
14DC-05D05N(P)(H3)	±5	±100	82	±1200
14DC-05D09N(P)(H3)	±9	±56	83	±470
14DC-05D12N(P)(H3)	±12	±42	84	±220
14DC-05D15N(P)(H3)	±15	±34	84	±220
14DC-05D24N(P)(H3)	±24	±21	85	±47
14DC-XXS03NP(H3)	3.3	303	78	2400
14DC-XXS05NP(H3)	5	200	82	2400
14DC-XXS09NP(H3)	9	112	85	1000
14DC-XXS12NP(H3)	12	84	85	680
14DC-XXS15NP(H3)	15	67	87	330
14DC-XXS24NP(H3)	24	42	85	220
14DC-XXD03NP(H3)	±3.3	±151	78	±1200
14DC-XXD05NP(H3)	±5	±100	82	±1200
14DC-XXD09NP(H3)	±9	±56	85	±680
14DC-XXD12NP(H3)	±12	±42	85	±330
14DC-XXD15NP(H3)	±15	±34	87	±220
14DC-XXD24NP(H3)	±24	±21	85	±100

Note：

1:No suffix is standard isolation (1.5KVDC) e.g, 14DC-05S05N, *add suffix “H3” for 3KVDC isolation.

2: No suffix P is No short circuit protection, e.g, 14DC-05S05N,

   *add suffix “P” for short circuit protection, e.g, 14DC-05S05NP, 14DC-05S12NPH3.

3: ”XX” Is Input Voltage : 12=12Vdc,15=15Vdc, 24=24Vdc, e.g, 14DC-12S05NP, 14DC-15S12NPH3, 14DC-24S15NP.

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Range	Vo,Io Nom @Vin:5V		±10		%
	Vo,Io Nom @Vin:12V,15V,24V		±20		%
Filter	Capacitor

Output Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance	100% full load			±5	%
Short Circuit Protection	without suffix "P"			1	Sec
	with suffix "P"	Continuous
Line Regulation	For 1.0% OF Vin		1.2		%
Load Regulation	3.3V(10% To 100% F.L)		15	20	%
	5V(10% To 100% F.L)		10	15	%
	9V(10% To 100% F.L)		8	10	%
	12V(10% To 100% F.L)		7	10	%
	15V(10% To 100% F.L)		6	10	%
	24V(10% To 100% F.L)		5	10	%
Ripple & Noise	BW=DC To 20MHz @Vo:3.3V,5V,9V,12V,15V		30	75	mVp-p
	BW=DC To 20MHz @ Vo:24V		50	100	mVp-p

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Isolation Resistance	500Vdc	1000			MΩ
Isolation Capacitance	Input-output,100KHz/0.1V		20		pF
Switching Frequency	Full load, nominal input @5V Vin		370		KHz
	Full load, nominal input @other Vin		250		KHz
Operation Temperature		-40		+105	℃
Storage Temperature		-55		+125	℃
Humidity	Non Condensing			95	%
Cooling	Free air Convection
Case material	DAP
MTBF	MIL-HDBK-217F @25℃	3500000			Hours
Weight			2.1		g
Dimensions		19.5 x 6.0 x 10.0			mm

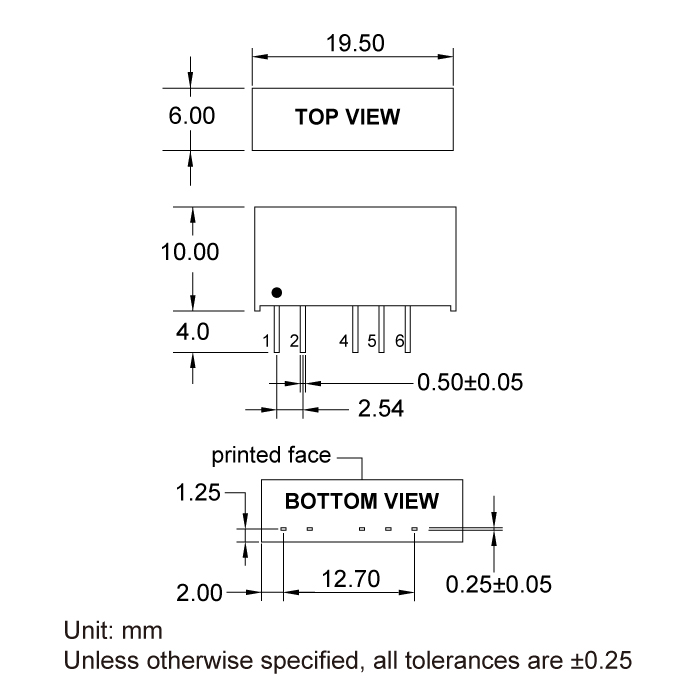

Dimension

 Files Download      14DC-Series.pdf

Certification
