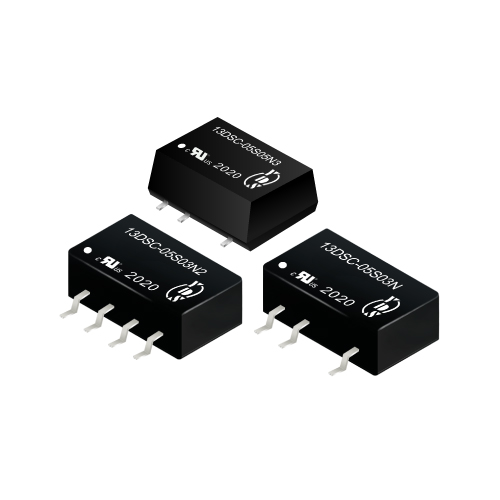

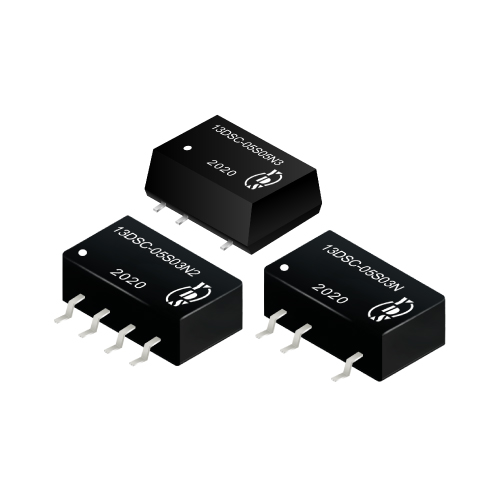

經濟型 1瓦 1.5KV~3KV隔離電壓 SMD DC-DC電源轉換器

狀態:
數量:
  • 13DSC 系列
  • YDS
功能&特點


  • 14PIN SMD 包裝。

  • 空載輸入電流低至5mA。

  • 連續短路保護。

  • 效率高達87%。

  • 非穩壓輸出類型。

  • 1.5KVDC~3KVDC 隔離電壓。

  • 操作環境溫度:-40°C 至 +105°C。

  • 工業標準引腳。

  • 設計參考IEC62368,UL62368,EN62368。




Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified



Part Number Output Voltage Output Current Efficiency Capacitive Load(μF) Package Style
Vdc mA %TYP Max.
13DSC-05S03NY(P)(H3) 3.3 303 76 2400 1/2/3
13DSC-05S05NY(P)(H3) 5 200 82 2400 1/2/3
13DSC-05S09NY(P)(H3) 9 112 83 1000 1/2/3
13DSC-05S12NY(P)(H3) 12 84 84 470 1/2/3
13DSC-05S15NY(P)(H3) 15 67 84 330 1/2/3
13DSC-05S24N3(P)(H3) 24 42 85 100 3
13DSC-XXS03NYP(H3) 3.3 303 78 2400 1/2/3
13DSC-XXS05NYP(H3) 5 200 82 2400 1/2/3
13DSC-XXS09NYP(H3) 9 112 85 1000 1/2/3
13DSC-XXS12NYP(H3) 12 84 85 680 1/2/3
13DSC-XXS15NYP(H3) 15 67 87 330 1/2/3
13DSC-XXS24N3P(H3) 24 42 85 220 3

Note:
1: No suffix is standard isolation (1.5KVDC) e.g, 13DSC-15S05NP,

  *add suffix “H3” for 3KVDC isolation, e.g, 13DSC-12S09NPH3, 13DSC-12S12NPH3.

   Y = 1 or 2 or 3 for package, No suffix Y package1, When Y=2, package2, and so on,

   e.g,13DSC-15S05N2P,13DSC-24S12N3PH3.

   When the I / O is equal to 24 V, package 1 and 2 disable.

2: No suffix P is No short circuit protection, e.g, 13DSC-05S05N,

   *add suffix “P” for short circuit protection, e.g, 13DSC-05S05N2P, 13DSC-05S12N3PH3.
3: "XX”Is Input Voltage : 12=12Vdc,15=15Vdc, 24=24Vdc, e.g, 13DSC-12S05N3P, 13DSC-15S12NPH3, 13DSC-24S15N2P.


Input Specifications


Parameters Conditions Min Typ Max Units
Voltage Range Vo,Io Nom
@Vin:5V
  ±10   %
Vo,Io Nom
@Vin:12V,15V,24V
  ±20   %
Filter Capacitor


Output Specifications


Parameters Conditions Min Typ Max Units
Voltage Tolerance 100% full load     ±5 %
Short Circuit
Protection
without suffix "P"     1 Sec
With Suffix "P" Continuous
Line Regulation For 1.0% OF Vin   1.2   %
Load Regulation 3.3V(10% To 100% F.L)   15 20 %
5V(10% To 100% F.L)   10 15 %
9V(10% To 100% F.L)   8 10 %
12V(10% To 100% F.L)   7 10 %
15V(10% To 100% F.L)   6 10 %
24V(10% To 100% F.L)   5 10 %
Ripple & Noise BW=DC To 20MHz
@Vo:3.3V,5V,9V,12V,15V
  30 75 mVp-p
BW=DC To 20MHz
@Vo:24V
  50 100 mVp-p


General Specifications


Parameters Conditions Min Typ Max Units
Isolation Resistance 500Vdc 1000
Isolation Capacitance Input-output,100KHz/0.1V   20   pF
Switching Frequency Full load, nominal input
@5V Vin
  370   KHz
Full load, nominal input
@other Vin
  250   KHz
Operation Temperature   -40   +105
Storage Temperature   -55   +125
Humidity Non Condensing     95 %
Cooling Free air Convection
Case material DAP
MTBF MIL-HDBK-217F @25℃ 3500000     Hours
Weight Package 1/2/3 1.2/1.2/1.28 g

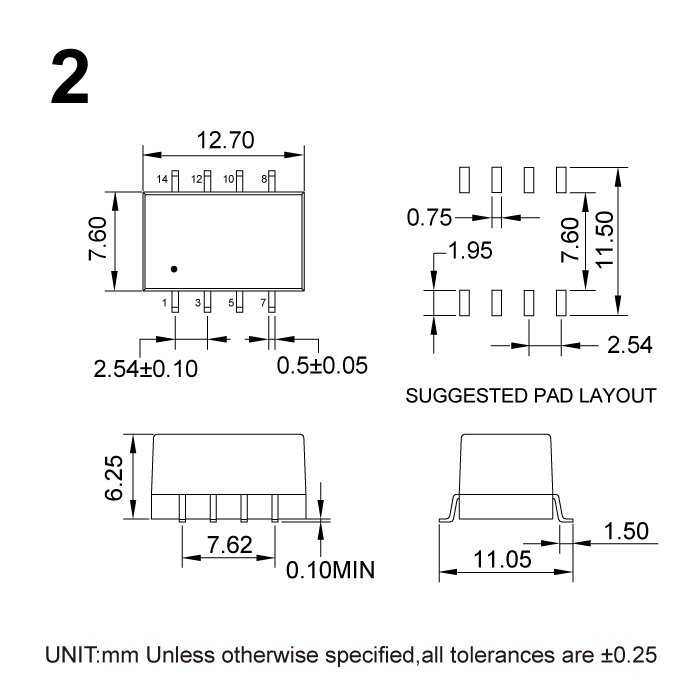

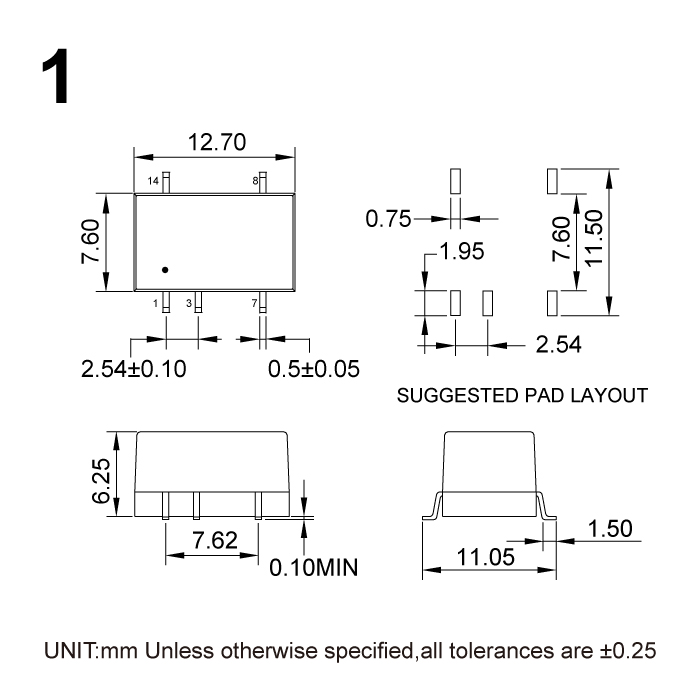

Dimensions Package 1 12.7x7.6x6.25 mm
Package 2 12.7x7.6x6.25 mm

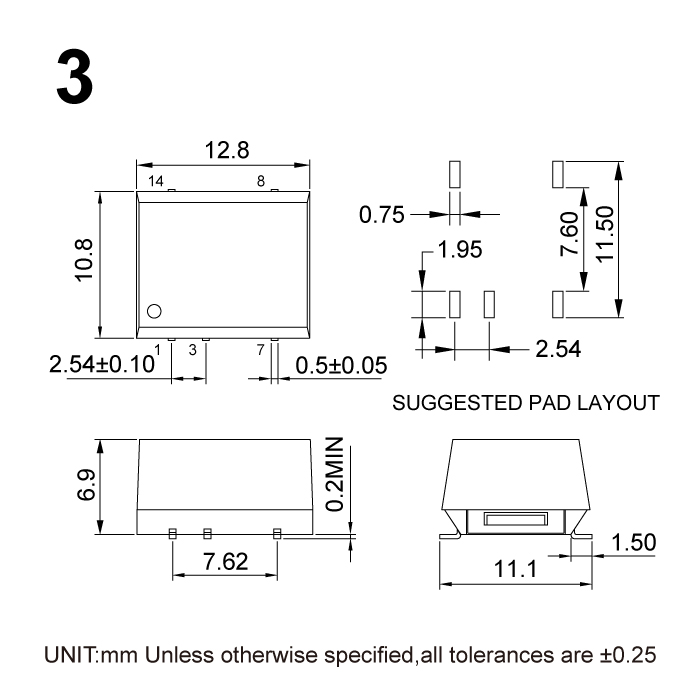

Package 3 12.8x10.8x6.9 mm



 Files Download   13DSC Series.pdf
