高效型 2瓦 SIP7 1.5KV~6KV隔離電壓 DC-DC電源轉換器

功能&特點

• 7PIN SIP 包裝。

• 空載輸入電流低至5mA。


• 連續短路保護。

• 效率高達89%。

• 非穩壓輸出類型。

• 1.5KVDC ~6KVDC 隔離電壓。

• 工業標準引腳。

• 操作環境溫度：-40°C 至 +105°C。

• 設計參考IEC62368，UL62368，EN62368。

---

Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified

Part Number	Output Voltage	Output Current	Efficiency	Capacitive Load(μF)
	Vdc	mA	%TYP	Max.
12DC-05S05NP2(H3)	5	400	84	2400
12DC-05S09NP2(H3)	9	223	85	820
12DC-05S12NP2(H3)	12	167	85	470
12DC-05S15NP2(H3)	15	133	86	220
12DC-05S24NP2(H3)	24	84	87	100
12DC-05D05NP2(H3)	±5	±200	82	±1200
12DC-05D09NP2(H3)	±9	±112	85	±330
12DC-05D12NP2(H3)	±12	±84	85	±330
12DC-05D15NP2(H3)	±15	±67	87	±100
12DC-05D24NP2(H3)	±24	±42	88	±47
12DC-XXS05NP2(H3)	5	400	85	2400
12DC-XXS09NP2(H3)	9	223	87	820
12DC-XXS12NP2(H3)	12	167	87	470
12DC-XXS15NP2(H3)	15	133	88	220
12DC-XXS24NP2(H3)	24	84	89	100
12DC-XXD05NP2(H3)	±5	±200	82	±1200
12DC-XXD09NP2(H3)	±9	±112	85	±330
12DC-XXD12NP2(H3)	±12	±84	87	±330
12DC-XXD15NP2(H3)	±15	±67	88	±100
12DC-XXD24NP2(H3)	±24	±42	89	±47

Note:
1:No suffix is standard isolation (1.5KVDC) e.g, 12DC-05S05NP2，
   *add suffix “H3” for 3KVDC isolation, *add suffix “H4” for 4KVDC isolation,
   *add suffix “H5” for 5.2KVDC isolation, *add suffix “H6” for 6KVDC isolation.
2:”XX” Is Input Voltage : 12=12Vdc,15=15Vdc, 24=24Vdc
   e.g, 12DC-12S05NP2, 12DC-15S12NP2H3, 12DC-24S15N2PH6

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Range	Vo,Io Nom		±10		%
Filter	Capacitor

Output Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance	100% full load			±5	%
Short Circuit Protection	Continuous
Line Regulation	For 1.0% OF Vin		1.2		%
Load Regulation	5V(10% To 100% F.L)		8	15	%
	9V(10% To 100% F.L)		6	10	%
	12V(10% To 100% F.L)		5	10	%
	15V(10% To 100% F.L)		4	10	%
	24V(10% To 100% F.L)		3	10	%
Ripple & Noise	BW=DC To 20MHz		75	150	mVp-p

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Isolation Resistance	500Vdc	1000			MΩ
Isolation Capacitance	Input-output,100KHz/0.1V		20		pF
Switching Frequency	Full load,nominal input @5V Vin		215		KHz
	Full load,nominal input @other Vin Vin		250		KHz
Operating Temperature		-40		+105	℃
Storage Temperature		-55		+125	℃
Humidity	Non Condensing			95	%
Cooling	Free air Convection
Case material	DAP
MTBF	MIL-HDBK-217F @25℃	3500000			Hours
Weight			2.1		g
Dimensions		19.5 x 6.0 x 10.0			mm

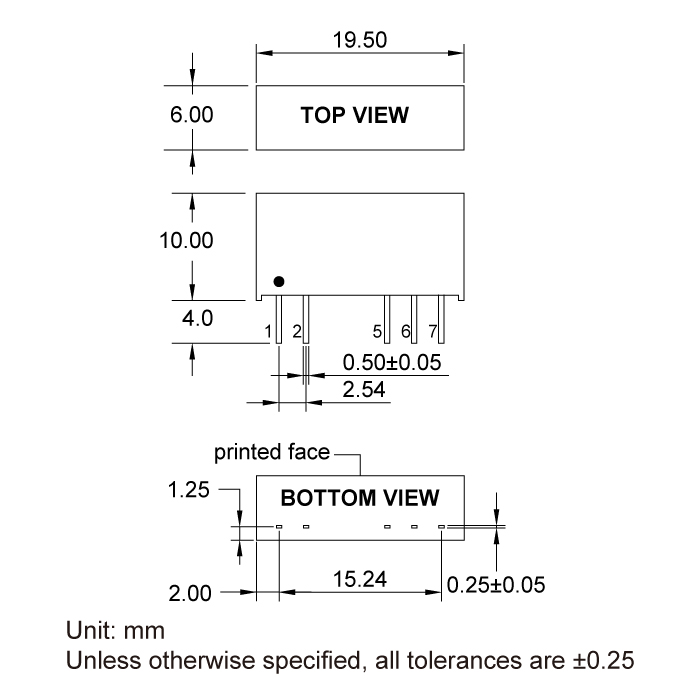

Dimension

 Files Download    12DC-2W Series.pdf

Certification
