10:1寬輸入 6瓦 1.5KV隔離電壓 DC-DC電源轉換器

功能&特點

• 寬輸入10:1電壓範圍。

• 效率高達88%。

• 穩壓輸出類型。

• 低雜訊。

• 內部為SMD結構。

• 1.5KV 隔離電壓。

• 操作環境溫度:-40℃ 至 +85℃。

• 工業標準引腳。

• 連續性短路保護線路，採用電流回饋模式。

---

Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified

Part Number	Input Voltage Range	Output Voltage Range	Output Current	Efficiency	Capacitive Load(μF)
	Vdc	Vdc	mA	%Typ	Max.
27DX-24S03R6W	6-60	3.3	1600	85	1000
27DX-24S05R6W	6-60	5	1200	88	1000
27DX-24S09R6W	6-60	9	667	85	820
27DX-24S12R6W	6-60	12	500	87	680
27DX-24S15R6W	6-60	15	400	87	680
27DX-24S24R6W	6-60	24	250	87	330

Note:
1. 50% load when Vin is less than 9Vdc.
2. Ripple and ripple noise is measured by using test board with ceramic capacitor 1 μF at 50mm from output pins.

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance	Vo, Io Nom			10:1
Surge Voltage (100ms max)				76	Vdc
Input Current	LOAD:0%			5	mA
Start-up Time				6	Vdc
Start-up Time	Nominal input voltage & Nominal load		20		ms
CTRL	Module on	0 ~ 0.8Vdc or open circuit
	Module off	2.5 ~ 12Vdc
Filter	Capacitor

Output Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance	100% full load			±3	%
Line Regulation	Regulated			±0.5	%
Load Regulation	Regulated			±0.8	%
Ripple & Noise	BW=DC To 20MHz			300	mVp-p
Temperature Coefficient	100% Load		±0.02	±0.03	%/℃
Over-current Protection	9~60Vdc	110		250	%Io
Over-voltage Protection	9~60Vdc	110		160	%Vo
Short Circuit Protection	9~60Vdc	Continuous, Recovers automatically after fault condition is removed

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Isolation Resistance	500Vdc	1000			MΩ
Isolation Voltage	Input / Output	1500Vdc/ 0.5mA/60Sec
Switching Frequency	Full load, nominal input		220		KHz
Operating Temperature		-40		+85	℃
Humidity	Non Condensing			95	%
Cooling	Free air Convection
Case Material	DAP
MTBF	MIL-HDBK-217F @25℃	1500000			Hours
Weight		4.5			g
Dimensions		21.8 x 9.2 x 11.1			mm

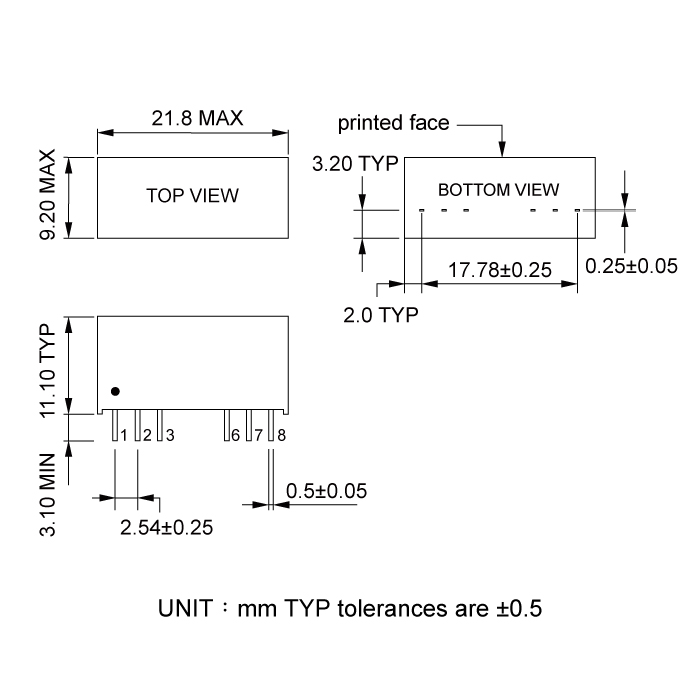

Dimension

 Files Download       27DX-6W-Single-Series.pdf

Certification
