VSM系列 多功能表面貼裝磁性元件

功能&特點

• 元冊科技是提供產品客製化的製造商，歡迎OEM / ODM。

---

Electrical Specifications@25°C; Operating Temperature -40°C to 85°C

Part  Number	Parallel Ratings			Series Ratings			Type	Test Freq (MHz)
	Inductance (μH)	Current (AMP)	DCR Ωmax	Inductance (μH)	Current (AMP)	DCR Ωmax
VSM-1001NL	10	2.500	0.046	40	1.250	0.184	1	1
VSM-2001NL	20	1.600	0.119	80	0.800	0.480
VSM-5001NL	50	1.020	0.217	200	0.510	0.870
VSM-8201NL	82	0.730	0.444	328	0.365	1.780
VSM-1011NL	100	0.730	0.469	400	0.365	1.880
VSM-2011NL	200	0.500	0.810	800	0.250	3.220
VSM-3011NL	300	0.420	0.950	1200	0.210	3.730
VSM-1002NL	10	4.000	0.026	40	2.000	0.150	2	1
VSM-2002NL	20	2.100	0.071	80	0.050	0.300
VSM-5002NL	50	1.350	0.242	200	0.575	0.970
VSM-1012NL	100	0.980	0.332	400	0.475	1.330
VSM-1512NL	150	0.720	0.603	600	0.036	2.420
VSM-2512NL	250	0.600	0.881	1000	0.300	3.530
VSM-3012NL	300	0.550	0.930	1200	0.275	3.750

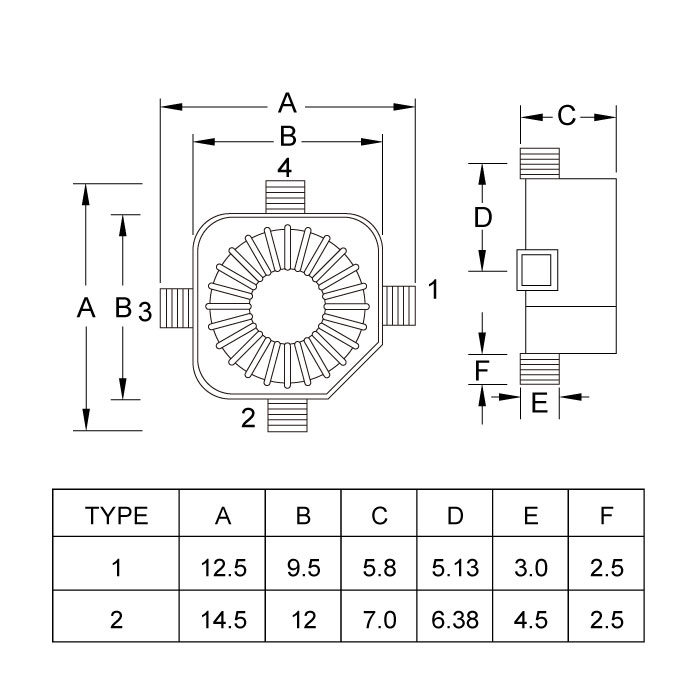

Dimension

 Files Download        VSM-Series.pdf

Certification
