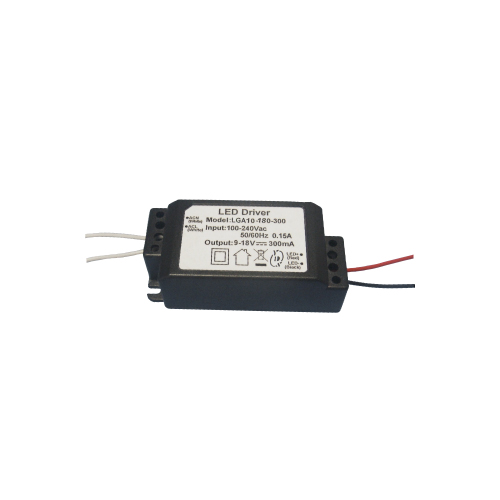

LGA10 系列
YDS
通用輸入電壓90~264VAC。
效率高達82% TYP。
具有PFC功能。
短路/過電流/過電壓保護。
Part Number | Constant Current Region | Max Output Current | Output Power | Efficiency |
---|---|---|---|---|
(V) | (mA) | (W) Max | %(TYP) | |
LGA10-120-300 | 6.0-12.0 | 300 | 3.6 | 80 |
LGA10-180-300 | 9.0-18.0 | 300 | 5.4 | 81 |
LGA10-260-300 | 18.0-26.0 | 300 | 7.8 | 82 |
LGA10-360-300 | 24.0-36.0 | 300 | 10.8 | 82 |
LGA10-120-350 | 6.0-12.0 | 350 | 4.2 | 80 |
LGA10-180-350 | 9.0-18.0 | 350 | 6.3 | 81 |
LGA10-260-350 | 18.0-26.0 | 350 | 9.1 | 82 |
LGA10-095-500 | 5.0-9.5 | 500 | 4.8 | 80 |
LGA10-120-500 | 6.0-12.0 | 500 | 6.0 | 81 |
LGA10-180-500 | 9.0-18.0 | 500 | 9.0 | 82 |
LGA10-045-700 | 3.0-4.5 | 700 | 3.2 | 80 |
LGA10-090-700 | 4.5-9.0 | 700 | 6.3 | 81 |
LGA10-180-700 | 12.0-18.0 | 700 | 12.6 | 82 |
Parameters | Conditions | Min | Typ | Max | Units | |
---|---|---|---|---|---|---|
Rated input voltage | Vo, Io nom | 100-240 | Vac | |||
Voltage Range | Vo, Io nom | 90 | 264 | Vac | ||
Line Frequency | Vi nom,Ionom | 47 | 50/60 | 63 | Hz | |
Inrush Current | Io nom | Vi:115VAC | 10 | A | ||
Vi:230VAC | 20 | A | ||||
Power Factor | PF>0.80 / 115Vac,230Vac at full load |
Parameters | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|
Isolation Voltage | Input / Output | 3KVac/ 5mA/5Secs | |||
Current Accuracy | Vi=100-240Vac | ±3 | ±5 | % | |
Operating Temperature | Operating at Vi nom, Io nom | -20 | +50 | ℃ | |
Protection | Over Current | >108% rated output power(Constant current limiting) | |||
Protection type: Recovers automatically after fault condition is removed | |||||
Over Voltage | 120%-150% rated output Voltage | ||||
Protection type: Recovers automatically after fault condition is removed | |||||
Short circuit | Recovers automatically after fault condition is removed |
Files Download LGA10-Series.pdf
