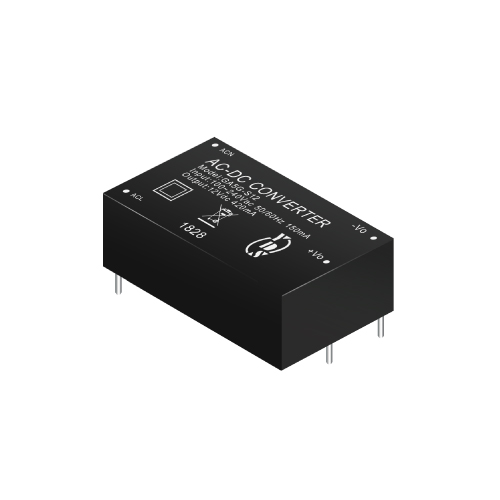

GA5G 系列
YDS
通用輸入電壓 85~265VAC。
效率高達 82%。
短路/過載/過壓保護。
效能符合 DOE6,CoC V5 T2。
無負載功耗<0.075W。
產品保固3年。
符合RoHS認證。
Part Number | Output Wattage | Output Voltage | Output Current | Ripple & Noise | Efficiency |
---|---|---|---|---|---|
(W) | (VDC) | (mA) | (mV) max | (TYP %) | |
GA5G-S05-X | 5 | 5 | 1000 | 200 | 75 |
GA5G-S12-X | 5.04 | 12 | 420 | 200 | 81 |
GA5G-S15-X | 4.95 | 15 | 330 | 200 | 81 |
GA5G-S24-X | 5.52 | 24 | 230 | 200 | 82 |
Note:
X= ONE digit representing the output power (W) The output power is rising in steps of 1W from 1W to the max. output Power; When the output power is maximum power, X is omitted.
E.g:3W=GA5G-S05-3, GA5G-S15-3 5W=GA5G-S05, GA5G-S15
Parameters | Conditions | Min | Typ | Max | Units | |
---|---|---|---|---|---|---|
Rated Input Voltage | Vo, Io nom | 100 ~ 240 | Vac | |||
Voltage Range | Vo, Io nom | AC in | 80 | 265 | Vac | |
DC in | 100 | 370 | Vdc | |||
Line Frequency | Vi nom. Io nom | 47 | 63 | Hz | ||
Inrush Current | Io nom | Vi: 115VAC | 20 | A | ||
Vi: 230VAC | 40 | A | ||||
Leakage Current | 0.25 | mA | ||||
Input Current (Full load) | 120mA Max.(115Vac) 80mA Max.(230Vac) | |||||
External Fuse (Recommend) | VDE / UL / CCC FUSE 1.0A / 250V (Slow blow) |
Parameters | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|
Output Voltage Accuracy | Vi nom, Io nom | ±5 | % | ||
Minimum Load | Vi nom | 0 | % | ||
Line Regulation | Io nom, Vi min....Vi max | ±1.0 | % | ||
Load Regulation | Vi nom, Io min....Io nom | ±3.0 | % | ||
Protection | Over load | Above 115% rated output power | |||
Protection type: Recovers automatically after fault condition is removed | |||||
Over Voltage | 120%-150% rated output Voltage | ||||
Protection type: Zener diode clamp | |||||
Short circuit | Recovers automatically after fault condition is removed |
Parameters | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|
Switching Frequency | Vi nom, Io nom | 100 | KHz | ||
Isolation Voltage | Input / Output | 3KVac / 5mA / 5Secs | |||
Isolation Resistance | Input / Output, @500 Vdc | 100 | MΩ | ||
Operating Temperature | Refer to Temperature Derating Graph | -25 | +70 | ℃ | |
Storage Temperature | Non Operational | -40 | +85 | ℃ | |
Relative Humidity | Vi nom, Io nom | 95 | % RH | ||
Safety Standards | EN62368-1 approved | ||||
EMI Conduction & Radiation | Compliance to EN55032 | ||||
EMS Immunity | Compliance to EN55024 | ||||
Dimension | L50.80x W25.40 x H17.02mm | ||||
Cooling | Free air convection | |
Files Download GA5G-Series.pdf
