56TB系列 3KVrms隔離電壓 T1/CEPT/ISDN-PRI接口 SMT變壓器

功能&特點

• 雙SMT封裝包含發射和接收變壓器。

• 型號匹配領先的收發器IC。

• 符合3KV加強絕緣。

測試條件

• 電感 ------------------10KHz/20mV。

• 漏電感 ---------------100KHz/1V。

• 互繞電容-------------100KHz/1V。

---

Electrical Specifications@25°C; Operating Temperature 0°C to 70°C

Part Number	Turns Ratio (±5%)	OCL @25℃(mH min.)	Primary Pins
56TB-122A1NL	1CT:1CT&1CT:1CT	1.20&1.20	1-3,6-8
56TB-122B1NL	1CT:1CT&1CT:2CT	1.20&1.20	1-3,6-8
56TB-162C1NL	1CT:1.15CT&1CT:1CT	1.60&1.60	16-14,6-8
56TB-122D1NL	1CT:1.15CT&1CT:1.15CT	1.20&1.20	1-3,6-8
56TB-152E1NL	1CT:1.15CT&1CT:2CT	1.50&1.20	16-14,6-8
56TB-122A2NL	1CS:1CS&1CS:1.36CS	1.20&1.20	1-4,5-8
56TB-122F1NL	1CT:1CT&1CT:1.36CT	1.20&1.20	1-3,6-8
56TB-122G1NL	1CT:1.36CT&1CT:1.36CT	1.20&1.20	1-3,6-8
56TB-122H1NL	1CT:1.41CT&1CT:1.41CT	1.20&1.20	16-14,11-9
56TB-122I1NL	1CT:1.41CT&1CT:1.41CT	1.20&1.20	1-3,11-9
56TB-122J1NL	1CT:2CT&1CT:1.08CT	1.20&1.20	16-14,6-8
56TB-122K1NL	1CT:2CT&1CT:1.14CT	1.20&1.20	16-14,6-8
56TB-122L1NL	1CT:2CT&1CT:1.36CT	1.20&1.20	16-14,6-8
56TB-122M1NL	1CT:2CT&1CT:2CT	1.20&1.20	16-14,6-8
56TB-162N1NL	1CT:2CT&2CT:1CT	1.60&1.60	1-3,6-8
56TB-122O1NL	1CT:2.3CT&1CT:2CT	1.20&1.20	16-14,6-8
56TB-152P1NL	1CT:1/1.26CT&1CT:2CT	1.50&1.20	16-14,6-8
56TB-122Q1NL	1CT:1.31CT&2.62CT:1CT	1.20&1.20	1-3,6-8
56TB-801R1NL	1CT:1.26CT&1.58CT:1CT	0.80&0.80	1-3,6-8

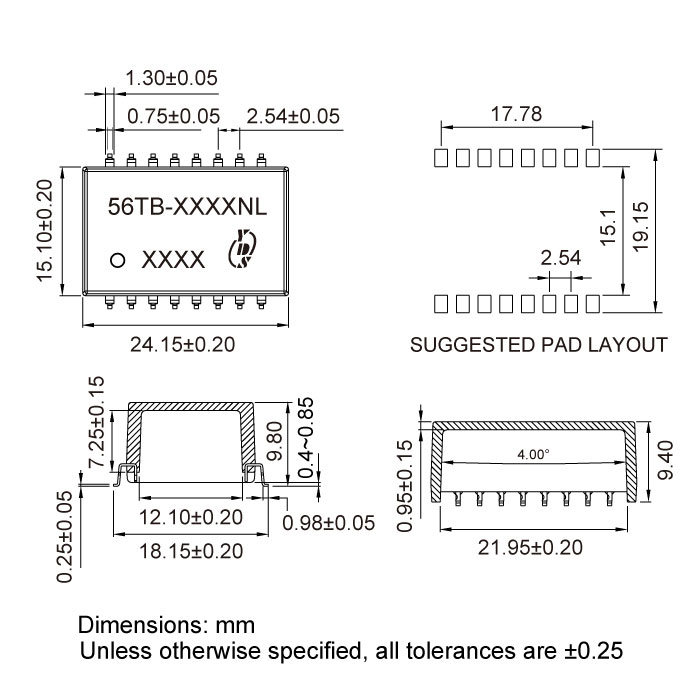

Dimension

 Files Download       56TB-Series.pdf

Certification
