29D 系列
YDS
2:1寬輸入電壓。
16PIN DIL包裝。
效率高達83%。
穩壓輸出類型。
內部為SMD結構。
不需外部零組件。
操作環境溫度:-40℃ 至 +85℃。
工業標準引腳。
Part Number | Input Voltage Range | Output Voltage | Output Current | Efficiency |
---|---|---|---|---|
Vdc | Vdc | mA | %TYP | |
29D-05S03R | 4.5-9 | 3.3 | 500 | 70 |
29D-05S05R | 4.5-9 | 5 | 400 | 70 |
29D-05S12R | 4.5-9 | 12 | 167 | 75 |
29D-05S15R | 4.5-9 | 15 | 133 | 78 |
29D-05S24R | 4.5-9 | 24 | 84 | 80 |
29D-12S03R | 9-18 | 3.3 | 500 | 70 |
29D-12S05R | 9-18 | 5 | 400 | 75 |
29D-12S12R | 9-18 | 12 | 167 | 80 |
29D-12S15R | 9-18 | 15 | 133 | 80 |
29D-12S24R | 9-18 | 24 | 84 | 83 |
29D-24S03R | 18-36 | 3.3 | 500 | 70 |
29D-24S05R | 18-36 | 5 | 400 | 76 |
29D-24S12R | 18-36 | 12 | 167 | 80 |
29D-24S15R | 18-36 | 15 | 133 | 80 |
29D-24S24R | 18-36 | 24 | 84 | 83 |
29D-05D05R | 4.5-9 | ±5 | ±200 | 70 |
29D-05D12R | 4.5-9 | ±12 | ±84 | 75 |
29D-05D15R | 4.5-9 | ±15 | ±67 | 78 |
29D-05D24R | 4.5-9 | ±24 | ±42 | 80 |
29D-12D05R | 9-18 | ±5 | ±200 | 75 |
29D-12D12R | 9-18 | ±12 | ±84 | 80 |
29D-12D15R | 9-18 | ±15 | ±67 | 80 |
29D-12D24R | 9-18 | ±24 | ±42 | 83 |
29D-24D05R | 18-36 | ±5 | ±200 | 76 |
29D-24D12R | 18-36 | ±12 | ±84 | 80 |
29D-24D15R | 18-36 | ±15 | ±67 | 80 |
29D-24D24R | 18-36 | ±24 | ±42 | 83 |
Parameters | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|
Voltage Tolerance | Vo,Io Nom | 2:1 | |||
Filter | Capacitor |
Parameters | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|
Voltage Tolerance | 100% full load | ±2 | % | ||
Short Circuit Protection | Continuous | ||||
Line Regulation | Regulated | ±0.5 | % | ||
Load Regulation | Regulated | ±0.8 | % | ||
Ripple & Noise | BW=DC To 20MHz | 100 | mVp-p | ||
Transient response setting time | 50% load step change | 350 | us |
Parameters | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|
Isolation Resistance | 500Vdc | 1000 | MΩ | ||
Switching Frequency | Full load, nominal input | 100 | KHz | ||
Operating Temperature | -40 | +85 | ℃ | ||
Humidity | Non Condensing | 95 | % | ||
Cooling | Free air Convection | ||||
Case material | DAP | ||||
MTBF | MIL-HDBK-217F@25℃ | 1500000 | Hours | ||
Weight | 5.2 | g | |||

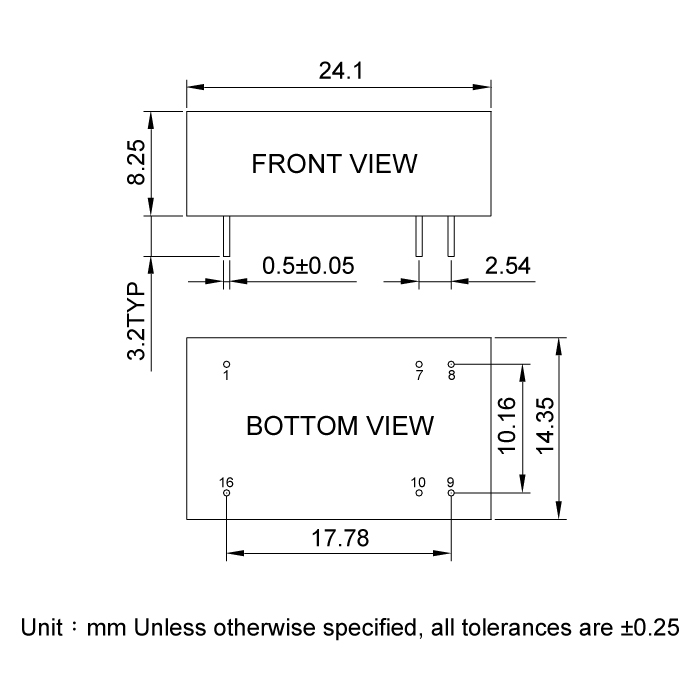

Dimensions | 24.1x14.35x8.25 | mm |
Files Download 29D-Series.pdf
