2瓦 1.5KV~3KV隔離電壓 SIP4 DIL8 經濟型 DC-DC電源轉換器

狀態:
數量:
  • 13DC-2W 系列
  • YDS
功能&特點


  • 4PIN SIP 及 8PIN DIL 包裝。

  • 空載輸入電流低至5mA。

  • 連續短路保護。

  • 效率高達89%。

  • 非穩壓輸出類型。

  • 1.5KVDC 及 3KVDC 隔離電壓。

  • 操作環境溫度:-40°C 至 +105°C。

  • 工業標準引腳。

  • 設計參考IEC62368,UL62368,EN62368。




Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified


Part Number Output Voltage Output Current Efficiency Capacitive Load(μF) Package Style
Vdc mA %TYP Max.
13DC-12S05NXP2(H3) 5 400 85 2400 2/3
13DC-12S09NXP2(H3) 9 223 87 820 2/3
13DC-12S12NXP2(H3) 12 167 87 470 2/3
13DC-12S15NXP2(H3) 15 133 88 220 2/3
13DC-12S24NXP2(H3) 24 84 89 100 2/3
13DC-12D05N3P2(H3) ±5 ±200 82 ±1200 3
13DC-12D09N3P2(H3) ±9 ±112 85 ±330 3
13DC-12D12N3P2(H3) ±12 ±84 87 ±330 3
13DC-12D15N3P2(H3) ±15 ±67 88 ±100 3
13DC-12D24N3P2(H3) ±24 ±42 89 ±47 3
13DC-15S05NXP2(H3) 5 400 85 2400 2/3
13DC-15S09NXP2(H3) 9 223 87 820 2/3
13DC-15S12NXP2(H3) 12 167 87 470 2/3
13DC-15S15NXP2(H3) 15 133 88 220 2/3
13DC-15S24NXP2(H3) 24 84 89 100 2/3
13DC-15D05N3P2(H3) ±5 ±200 82 ±1200 3
13DC-15D09N3P2(H3) ±9 ±112 85 ±330 3
13DC-15D12N3P2(H3) ±12 ±84 87 ±330 3
13DC-15D15N3P2(H3) ±15 ±67 88 ±100 3
13DC-15D24N3P2(H3) ±24 ±42 89 ±47 3
13DC-24S05NXP2(H3) 5 400 85 2400 2/3
13DC-24S09NXP2(H3) 9 223 87 820 2/3
13DC-24S12NXP2(H3) 12 167 87 470 2/3
13DC-24S15NXP2(H3) 15 133 88 220 2/3
13DC-24S24NXP2(H3) 24 84 89 100 2/3
13DC-24D05N3P2(H3) ±5 ±200 82 ±1200 3
13DC-24D09N3P2(H3) ±9 ±112 85 ±330 3
13DC-24D12N3P2(H3) ±12 ±84 87 ±330 3
13DC-24D15N3P2(H3) ±15 ±67 88 ±100 3
13DC-24D24N3P2(H3) ±24 ±42 89 ±47 3

Note:
1. No suffix is standard isolation (1.5KVDC) e.g, 13DC-15S05N2P2, *add suffix “H3” for 3KVDC isolation,

    e.g, 13DC-12S05N2P2H3, 13DC-15S12N3P2H3,

    X = 2 or 3 for package, When X=2, package2, and so on. e.g,13DC-12S05N2P2,13DC-24D12N3P2H3.



Input Specifications


Parameters Conditions Min Typ Max Units
Voltage Range Vo,Io Nom   ±10   %
Filter Capacitor


Output Specifications


Parameters Conditions Min Typ Max Units
Voltage Tolerance 100% full load     ±5 %
Short Circuit
Protection
Continuous
Line Regulation For 1.0% OF Vin   1.2   %
Load Regulation 5V(10% To 100% F.L)   8 15 %
9V(10% To 100% F.L)   6 10 %
12V(10% To 100% F.L)   5 10 %
15V(10% To 100% F.L)   4 10 %
24V(10% To 100% F.L)   3 10 %
Ripple & Noise BW=DC To 20MHz   75 150 mVp-p


General Specifications


Parameters Conditions Min Typ Max Units
Isolation Resistance 500Vdc 1000
Isolation Capacitance Input-output,100KHz/0.1V   20   pF
Switching Frequency Full load, nominal input   250   KHz
Operation Temperature   -40   +105
Storage Temperature   -55   +125
Humidity Non Condensing     95 %
Cooling Free air Convection
Case material DAP
MTBF MIL-HDBK-217F @25℃ 3500000     Hours
Weight Package 2/3 1.5/1.5 g

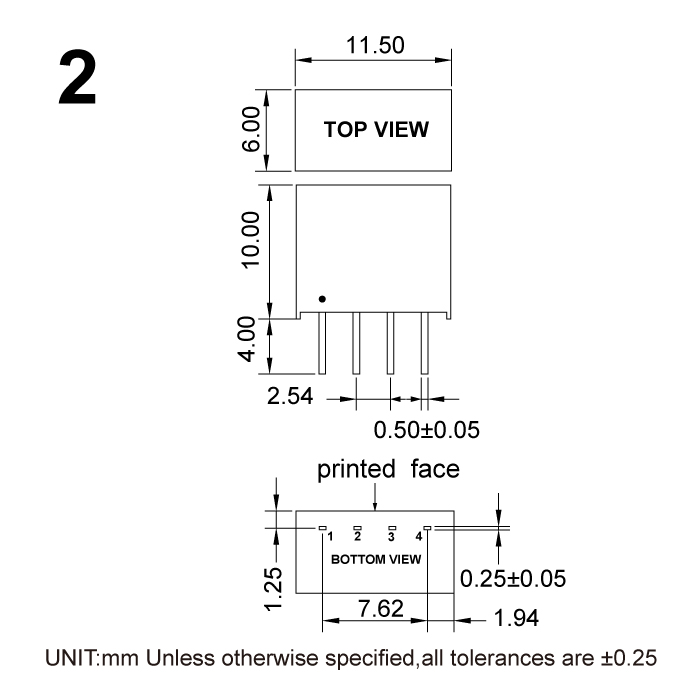

Dimensions Package 2 11.5x6.0x10.0 mm

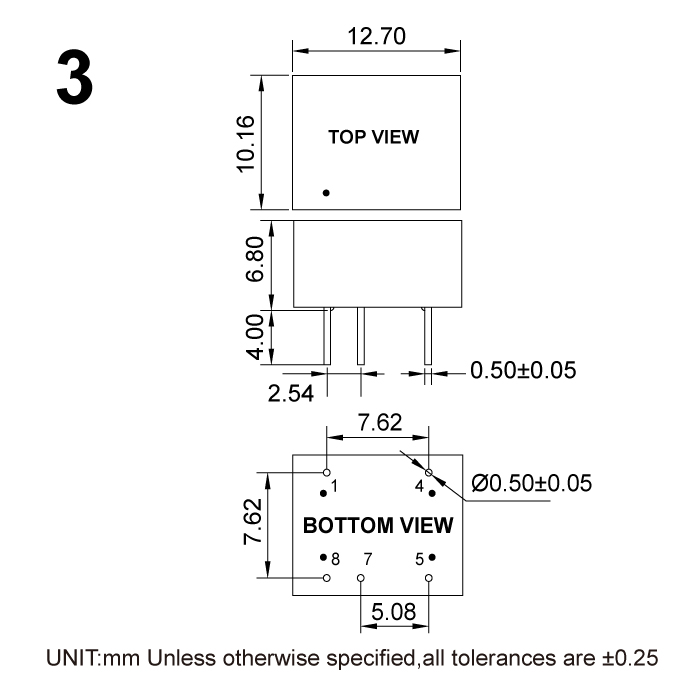

Package 3 12.7x10.16x6.8 mm



 Files Download   13DC-2W Series.pdf
