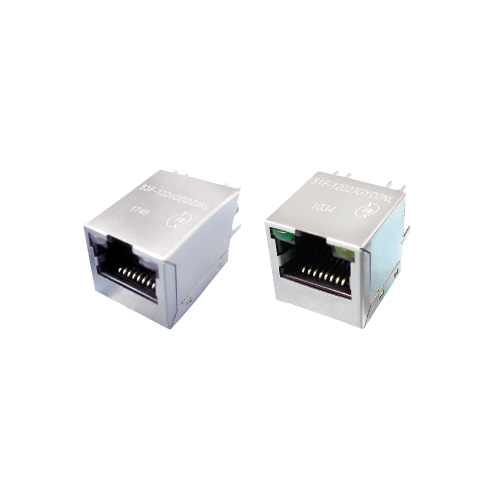

51F/53F(1G) 系列
YDS
磁性設計支援每種PHY。
符合或超過IEEE 802.3 和 ANSI X3.263標準,包括具有8mA偏置的350uH min OCL。
根據IEEE 802.3要求,最小為1500Vrms隔離。
Part Number | Turns Ratio ±3% | LEDs (L/R) | Insertion Loss (dB MAX) | Return Loss (dB MIN @100Ω±& 15Ω) | |||
---|---|---|---|---|---|---|---|
TX | RX | 0.1-100 MHz | 0.1-30 MHz | 30-60 MHz | 60-100 MHz | ||
51F-1305GYD2NL | 1CT: 1CT | 1CT: 1CT | G/Y | -1.0 | -18 | -16 | -10 |
53F-1330GYD2NL | 1CT: 1CT | 1CT: 1CT | G/Y | -1.0 | -18 | -16 | -10 |
Part Number | Cross Talk (dB MIN) | CDMR (dB MIN) | DCMR (dB MIN) | Hipot (VDC) | ||
---|---|---|---|---|---|---|
0.1-30 MHz | 30-60 MHz | 60-100 MHz | 0.1-100 MHz | 0.1-100 MHz | ||
51F-1305GYD2NL | -40 | -35 | -30 | -30 | -30 | 1500 |
53F-1330GYD2NL | -40 | -35 | -30 | -30 | -30 | 1500 |
Electrical Specifications@25°C; Operating Temperature -40°C to 85°C
Part Number | Turns Ratio ±2% | LEDs (L/R) | Insertion Loss (dB TYP) | Return Loss (dB TYP @100Ω± 15Ω) | |||
---|---|---|---|---|---|---|---|
TX | RX | 0.3-100 MHz | 1-10 MHz | 30 MHz | 60-80 MHz | ||
51F-13101GYDZ2NL | 1CT: 1CT | 1CT: 1CT | G/Y | -1.2 | -18 | -16 | -12 |
53F-1305GYDZ2NL | 1CT: 1CT | 1CT: 1CT | G/Y | -1.2 | -18 | -16 | -12 |
Part Number | Cross Talk (dB TYP) | Common Mode Rejection (dB TYP) | Hipot (Vrms) | |||
---|---|---|---|---|---|---|
1-10 MHz | 30-60 MHz | 60-100 MHz | 1-50 MHz | 50-130 MHz | ||
51F-13101GYDZ2NL | -30 | -30 | -30 | -30 | -20 | 1500 |
53F-1305GYDZ2NL | -30 | -30 | -30 | -30 | -20 | 1500 |
Dimension
Files Download 51F-53F-1G-Series.pdf
