經濟型 1瓦 1.5KV~3KV隔離電壓 SIP4 DIL8 DC-DC電源轉換器

狀態:
數量:
  • 13DC 系列
  • YDS
功能&特點


  • 4PIN SIP 及 8PIN DIL 包裝。

  • 空載輸入電流低至5mA。

  • 連續短路保護。

  • 效率高達87%。

  • 非穩壓輸出類型。

  • 1.5KVDC 及 3KVDC 隔離電壓。

  • 操作環境溫度:-40°C 至 +105°C。

  • 工業標準引腳。

  • 設計參考IEC62368,UL62368,EN62368。




Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified


Part Number Output Voltage Output Current Efficiency Capacitive Load(μF) Package Style
Vdc mA %TYP Max.
13DC-05S03NY(P)(H3) 3.3 303 76 2400 1/2/3
13DC-05S05NY(P)(H3) 5 200 82 2400 1/2/3
13DC-05S09NY(P)(H3) 9 112 83 1000 1/2/3
13DC-05S12NY(P)(H3) 12 84 84 470 1/2/3
13DC-05S15NY(P)(H3) 15 67 84 330 1/2/3
13DC-05S24NY(P)(H3) 24 42 85 100 2/3
13DC-05D03N3(P)(H3) ±3.3 ±151 76 ±1200 3
13DC-05D05N3(P)(H3) ±5 ±100 82 ±1200 3
13DC-05D09N3(P)(H3) ±9 ±56 83 ±470 3
13DC-05D12N3(P)(H3) ±12 ±42 84 ±220 3
13DC-05D15N3(P)(H3) ±15 ±34 84 ±1000 3
13DC-05D24N3(P)(H3) ±24 ±21 85 ±47 3
13DC-XXS03NYP(H3) 3.3 303 78 2400 1/2/3
13DC-XXS05NYP(H3) 5 200 82 2400 1/2/3
13DC-XXS09NYP(H3) 9 112 85 1000 1/2/3
13DC-XXS12NYP(H3) 12 84 85 680 1/2/3
13DC-XXS15NYP(H3) 15 67 87 330 1/2/3
13DC-XXS24NYP(H3) 24 42 85 220 2/3
13DC-XXD03N3P(H3) ±3.3 ±151 78 ±1200 3
13DC-XXD05N3P(H3) ±5 ±100 82 ±1200 3
13DC-XXD09N3P(H3) ±9 ±56 85 ±680 3
13DC-XXD12N3P(H3) ±12 ±42 85 ±330 3
13DC-XXD15N3P(H3) ±15 ±34 87 ±220 3
13DC-XXD24N3P(H3) ±24 ±21 85 ±100 3

Note:
1. No suffix is standard isolation (1.5KVDC) e.g, 13DC-15S05NP,

    *add suffix “H3” for 3KVDC isolation, e.g, 13DC-12S05NPH3, 13DC-15S12NPH3,

     Y = 1 or 2 or 3 for package, No suffix Y package1,When Y=2, package2, and so on. e.g,13DC-12S05N2P,13DC-24S12N3PH3.

     When the I / O is equal to 24 V, package 1 disable.
2. No suffix P is No short circuit protection,e.g, 13DC-05S05N,

    *add suffix “P” for short circuit protection, e.g, 13DC-05S05N2P, 13DC-05S12N3PH3.

3: ”XX” Is Input Voltage : 12=12Vdc,15=15Vdc, 24=24Vdc. e.g, 13DC-12S05N3P, 13DC-15S12NPH3, 13DC-24S15N2P


Input Specifications


Parameters Conditions Min Typ Max Units
Voltage Range Vo,Io Nom@Vin:5V   ± 10   %
Vo,Io Nom@Vin:12V,15V,24V   ± 20   %
Filter Capacitor


Output Specifications


Parameters Conditions Min Typ Max Units
Voltage Tolerance 100% full load     ±5 %
Short Circuit
Protection
without suffix "P"     1 Sec
With Suffix "P" Continuous
Line Regulation For 1.0% OF Vin   1.2   %
Load Regulation 3.3V(10% To 100% F.L)   15 20 %
5V(10% To 100% F.L)   10 15 %
9V(10% To 100% F.L)   8 10 %
12V(10% To 100% F.L)   7 10 %
15V(10% To 100% F.L)   6 10 %
24V(10% To 100% F.L)   5 10 %
Ripple & Noise BW=DC To 20MHz
@Vo:3.3V,5V,9V,12V,15V
  30 75 mVp-p
BW=DC To 20MHz
@Vo:24V
  50 100 mVp-p


General Specifications


Parameters Conditions Min Typ Max Units
Isolation Resistance 500Vdc 1000
Isolation Capacitance Input-output,100KHz/0.1V   20   pF
Switching Frequency Full load, nominal input
@5V Vin
  370   KHz
Full load, nominal input
@other Vin
  250   KHz
Operation Temperature   -40   +105
Storage Temperature   -55   +125
Humidity Non Condensing     95 %
Cooling Free air Convection
Case material DAP
MTBF MIL-HDBK-217F @25℃ 3500000     Hours
Weight Package 1/2/3 1.1/1.5/1.5 g

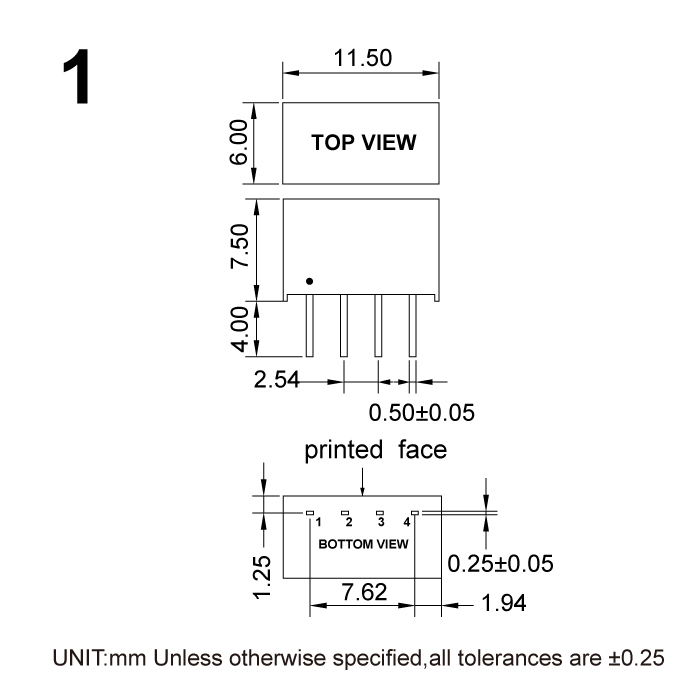

Dimensions Package 1 11.5x6.0x7.5 mm

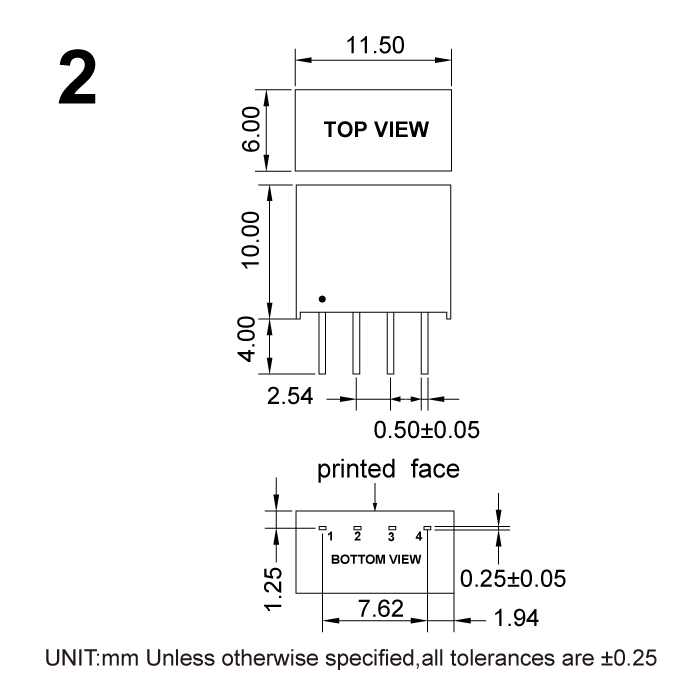

Package 2 11.5x6.0x10.0 mm
Package 3 12.7x10.16x6.8 mm




 Files Download   13DC Series.pdf



Certification
