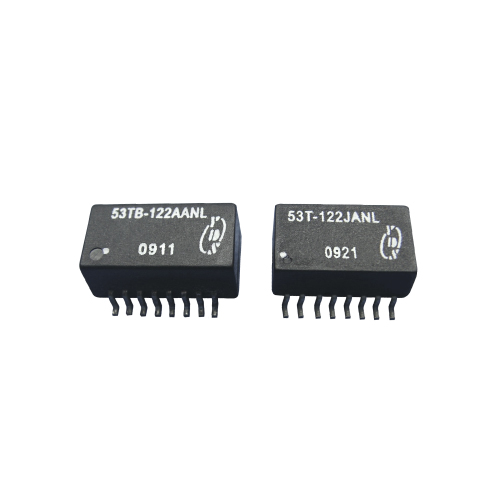

53T/53TB系列 1.5KVrms隔離電壓 T1/CEPT/ISDN-PRI接口變壓器

狀態:
數量:
  • 53T/53TB 系列

  • YDS

功能&特點


  • 小巧的表面貼裝封裝。

  • 雙SMT封裝包含發射和接收變壓器。

  • 與收發器IC匹配的型號。

  • 1500 Vrms隔離電壓。

  • 通過UL 1950認證。




Electrical Specifications@25°C; Operating Temperature 0°C to 70°C


Part Number Turns Ratio
(Pri:Sec±5%)
OCL
(mH min.)
CW/W
(pf max.)
STD Temp. Ext Temp.
53T(B)-1221ANL 53T(B)-1221ACNL 1CT:2CT&1CT:2CT 1.20&1.20 30&30
53T(B)-1222BNL 53T(B)-1222BCNL 1CT:2CT&1:1.36CT 1.20&1.20 30&30
53T(B)-1223CNL 53T(B)-1223CCNL 1:1.15CT&1CT:2CT 1.20&1.20 30&30
53T(B)-1224CNL 53T(B)-1224CCNL 1:1/1.26&1CT:2CT 1.20&1.20 30&30
53T(B)-1225ANL 53T(B)-1225ACNL 1CT:1.15CT&1CT:1.15CT 1.20&1.20 30&30
53T(B)-1223ANL 53T(B)-1223ACNL 1CT:1CT&1CT:1.15CT 1.20&1.20 30&30
53T(B)-1226ANL 53T(B)-1226ACNL 1CT:1CT&1CT:2CT 1.20&1.20 30&30
53T(B)-1027ANL 53T(B)-1027ACNL 1CT:1.41CT&1CT:1.41CT 1.00&1.00 30&30



Part Number LL
(uH max.)
DCR Pri.
(Ω max.)
DCR Sec.
(Ω max.)
Schematic Primary
Pins
STD Temp. Ext Temp.
53T(B)-1221ANL 53T(B)-1221ACNL .60 & .60 0.70&0.70 1.40&1.40 A 16-14,
6-8
53T(B)-1222BNL 53T(B)-1222BCNL .60 & .60 0.70&0.70 1.00&0.80 B 16-14,
6-8
53T(B)-1223CNL 53T(B)-1223CCNL .60 & .60 0.70&0.70 0.70&1.00 C 16-14,
6-8
53T(B)-1224CNL 53T(B)-1224CCNL .60 & .60 0.70&0.70 0.80&1.00 C 16-14,
6-8
53T(B)-1225ANL 53T(B)-1225ACNL .60 & .60 0.70&0.70 0.75&0.75 A 1-3,
6-8
53T(B)-1223ANL 53T(B)-1223ACNL .60 & .60 0.70&0.70 0.70&1.00 A 16-14,
6-8
53T(B)-1226ANL 53T(B)-1226ACNL .60 & .60 0.70&0.70 0.70&1.00 A 16-14,
6-8
53T(B)-1027ANL 53T(B)-1027ACNL .60 & .60 0.70&0.70 0.90&0.90 A 16-14,
11-9



Dimension

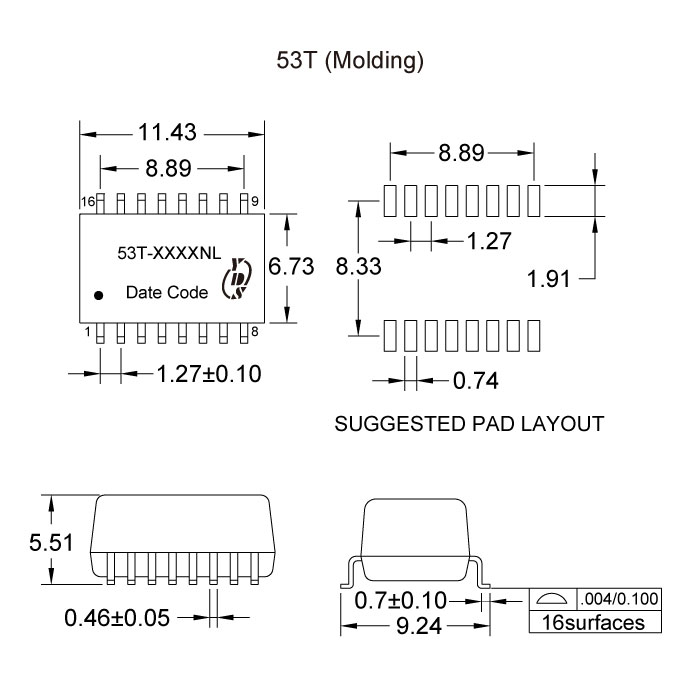

53T-53TB-01

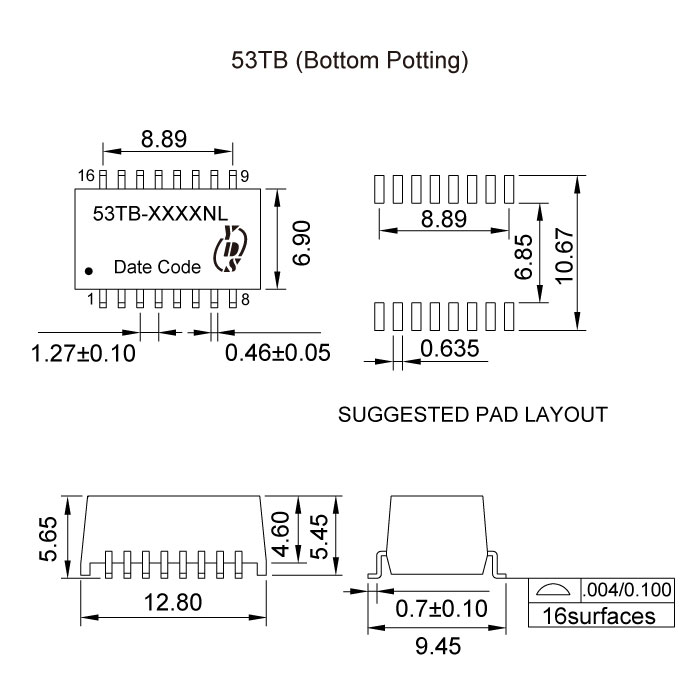

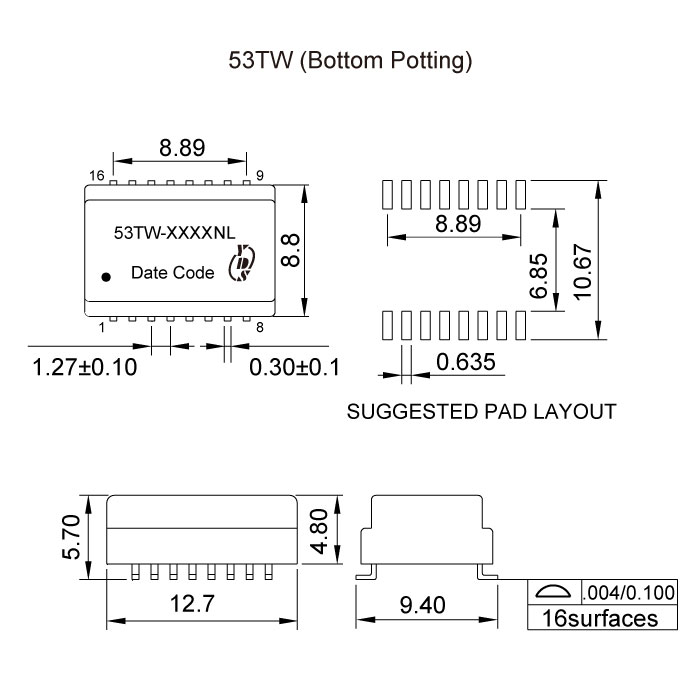

53T-53TB-02

53T-53TB-03




 Files Download       53T-53TB-Series.pdf
