15瓦 1.6KV隔離電壓 2:1寬輸入 DIP24 DC-DC電源轉換器

狀態:
數量:
  • YKA15 系列

  • YDS

功能&特點


  • 15瓦 DIL 包裝。

  • 寬輸入2:1電壓範圍。

  • 高效率達92%。

  • 穩壓輸出類型。

  • 無需最小負載。

  • 過功率和短路保護。

  • 符合UL94V-0規範包裝材質。

  • 操作環境溫度:-40°C 至 +79°C(無需降額)。

  • 100%高溫預燒測試。

  • 符合國際安規UL/cUL/IEC/EN 62368-1認證, CB-Report, CE Marking。

  • 通過EMI標準 EN55032:2015認證。

  • 通過EMS標準 EN55035:2017認證。

  • 通過EMC標準Canadian ICES-003 issue7(2020)認證。

  • 通過EMC標準47CFR FCC Part 15 subpart B認證。





Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified


Part Number Input
Voltage
Range
Input Current Output Voltage Output Current Efficiency Maximum
Capacitor
Load
No Load Full Load
Vdc mA(TYP) mA(TYP) Vdc mA(TYP) %(TYP) μF
YKA15-12S033 9-18 8 1222 3.3 4000 90 4700
YKA15-12S051 9-18 8 1401 5.1 3000 91 3600
YKA15-12S12 9-18 8 1389 12 1250 90 600
YKA15-12S15 9-18 8 1389 15 1000 90 500
YKA15-12S24 9-18 12 1374 24 625 91 200
YKA15-12D05 9-18 8 1454 ± 5 ± 1500 86 ± 1500
YKA15-12D12 9-18 12 1405 ± 12 ± 625 89 ± 360
YKA15-12D15 9-18 12 1389 ± 15 ± 500 90 ± 250
YKA15-24S033 18-36 6 618 3.3 4000 89 4700
YKA15-24S051 18-36 6 695 5.1 3000 90 3600
YKA15-24S12 18-36 6 695 12 1250 90 600
YKA15-24S15 18-36 6 687 15 1000 91 500
YKA15-24S24 18-36 10 695 24 625 90 200
YKA15-24D05 18-36 6 727 ± 5 ± 1500 86 ± 1500
YKA15-24D12 18-36 10 702 ± 12 ± 625 89 ± 360
YKA15-24D15 18-36 10 695 ± 15 ± 500 90 ± 250
YKA15-48S033 36-75 5 306 3.3 4000 90 4700
YKA15-48S051 36-75 5 350 5.1 3000 91 3600
YKA15-48S12 36-75 5 347 12 1250 90 600
YKA15-48S15 36-75 5 343 15 1000 91 500
YKA15-48S24 36-75 8 340 24 625 92 200
YKA15-48D05 36-75 5 364 ± 5 ± 1500 86 ± 1500
YKA15-48D12 36-75 8 347 ± 12 ± 625 90 ± 360
YKA15-48D15 36-75 8 347 ± 15 ± 500 90 ± 250


Input Specifications


Parameters Conditions Min Typ Max Units
Input Voltage 12V Models 9   18 Vdc
24V Models 18   36 Vdc
48V Models 36   75 Vdc
Input Surge Voltage
(100 ms max.)
12V Models -0.7   25 Vdc
24V Models -0.7   50 Vdc
48V Models -0.7   100 Vdc
Start-up Voltage 12V Models     9 Vdc
24V Models     18 Vdc
48V Models     36 Vdc
Under Voltage Shutdown 12V Models   7.5   Vdc
24V Models   15.5   Vdc
48V Models   32   Vdc
Start-up Time Constant Resistive Load, Nominal Vins Power-up   30   ms
Remote ON/OFF   30   ms
Input Filter All Models Internal Pi type
Remote ON/OFF
(Ctrl PIN Refer To –Vin PIN)
Positive Logic DC/DC ON Open or 3.5 Vdc - 12 Vdc
DC/DC OFF Short or 0 Vdc – 1.2 Vdc
Input Current Of Ctrl PIN -0.5   0.5 mA
Remote Off Input Current   3.5   mA


Output Specifications


Parameters Conditions Min Typ Max Units
Voltage Tolerance 100% load -2   +2 %
Line Regulation Vin(min) to Vin(max) @100% Load -0.2   +0.2 %
Load Regulation 0% Load to 100% Load -0.5   +0.5 %
Load Cross Regulation Asymmetrical Load
25% / 100% Load
Dual Output Models -5.0   +5.0 %
Ripple & Noise
(BW=20MHz)
(±)15Vout & 24Vout     150 mVp-p
Other Outputs     100 mVp-p
Transient Response Setting Time 25% Load Step Change   300 500 μs
Transient Response Deviation 25% Load Step Change -5 ± 3 +5 %
Temperature Coefficient   -0.02   +0.02 %/℃
Output Power Protection % of Io, Hiccup mode,
Auto-recovery
120 150 190 %
Short Circuit Protection Continuous [Hiccup Mode] ,Auto-Recovery
Over Voltage Protection 3.3Vout   3.9   Vdc
5.1Vout   6.2   Vdc
12Vout   15   Vdc
15Vout   18   Vdc
24Vout   30   Vdc


General Specifications


Parameters Conditions Min Typ Max Units
Isolation Voltage Input To Output (60sec) 1600     Vdc
Input(Output) To Case (60sec) 1000     Vdc
Isolation Resistance 500Vdc 1000
Isolation Capacitance 100kHz, 1V     2200 pF
Switching Frequency 100% Load,
Nominal Input
XXS051 & 24D12 235 250 285 KHz
Others 290 320 350 KHz
Operating Ambient Temperature
(Power Derating See Derating Graph)
Nominal Vin,
100% Load
YKA15-12D05,
YKA15-24D05,
YKA15-48D05
-40   57
YKA15-12D12,
YKA15-24D12
  68
YKA15-12S12,
YKA15-12S15,
YKA15-12D15,
YKA15-24S033,
YKA15-24S051,
YKA15-24S12,
YKA15-24S24,
YKA15-24D15,
YKA15-48S12,
YKA15-48D12,
YKA15-48D15
  72
YKA15-12S033,
YKA15-12S051,
YKA15-12S24,
YKA15-24S15,
YKA15-48S033,
YKA15-48S051,
YKA15-48S15
  76
YKA15-48S24   79
Thermal Impedance 20LFM   19.6   ℃/W
100LFM   15.3
200LFM   12.1
400LFM   8.9
Maximum Case Temperature       105
Storage Temperature   -55   125
Humidity Non Condensing 5   95 %
Cooling Natural Convection
Case Material Copper
Potting Material Silicone (UL94-V0)
MTBF MIL-HDBK-217F@25℃ (calculated) 4.61X105 Hours
Weight   18 g
Dimensions 31.6 x 20.1 x 10.0 mm

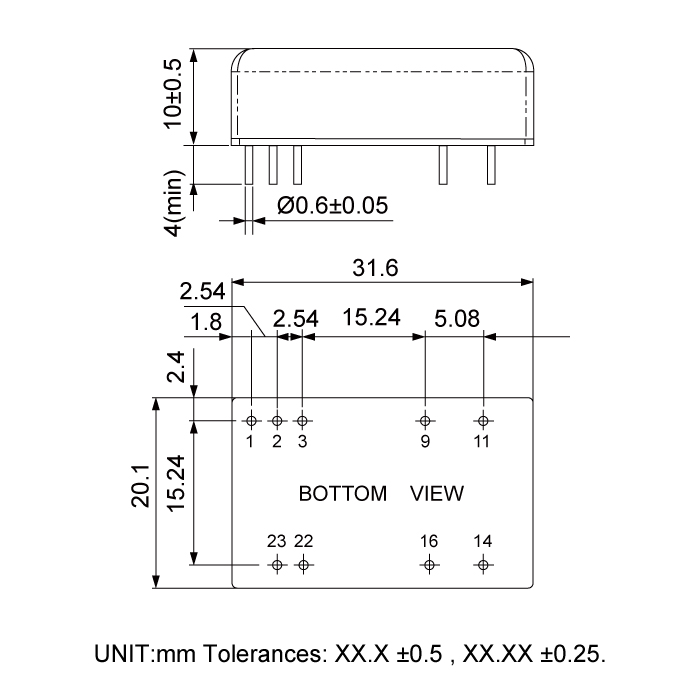

Dimension


YKA15




 Files Download       YKA15-Series.pdf
