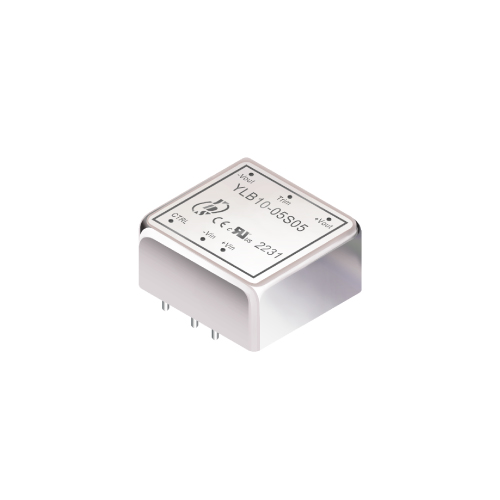

10瓦 4.5V-18V低電壓 4:1寬輸入 DIP DC-DC電源轉換器

狀態:
數量:
  • YLB10 系列

  • YDS

功能&特點


  • 10W DIL 封裝。

  • 4:1 寬輸入電壓範圍。

  • 效率高達 91%。

  • 穩壓輸出類型。

  • 不需要最小負載。

  • 過功率和短路保護。

  • 工作溫度:-40°C 至 +89°C(without derating)。

  • 符合UL94V-0規範包裝材質。

  • 符合國際安規UL/cUL/IEC/EN 62368-1認證, CB-Report, CE Marking。

  • 通過EMI標準 EN55032:2015認證。

  • 通過EMS標準 EN55035:2017認證。

  • 通過EMC標準Canadian ICES-003 issue7(2020)認證。

  • 通過EMC標準47CFR FCC Part 15 subpart B認證。




Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified


Part Number Input
Voltage
Range
Input Current
(5Vin/12Vin)
Output Voltage Output Current Efficiency
(5Vin/12Vin)
Maximum
capacitor
Load
No Load Full Load
Vdc (mA TYP) (mA TYP) Vdc mA(TYP) %(TYP) μF
YLB10-05S05 4.5-18 20 / 15 2247 / 936 5 2000 89 / 89 3400
YLB10-05S12 4.5-18 20 / 15 2246 / 926 12 833 89 / 90 590
YLB10-05S15 4.5-18 20 / 15 2223 / 916 15 667 90 / 91 390
YLB10-05S24 4.5-18 25 / 20 2200 / 927 24 417 91 / 90 220


Input Specifications


Parameters Conditions Min Typ Max Units
Input Voltage All Models 4.5   18 Vdc
Input Surge Voltage
(100 ms max.)
All Models -0.7   25 Vdc
Start-up Voltage All Models     4.5 Vdc
Under Voltage Shutdown All Models   3.5   Vdc
Start-up Time Constant Resistive Load, Nominal Vin Power-up   30

ms

Remote ON/OFF   30
Input Filter All Models Internal Pi type
Remote ON/OFF
(Ctrl PIN Refer To –Vin PIN)
Positive Logic DC/DC ON Open or 3.5 Vdc - 12 Vdc
DC/DC OFF Short or 0 Vdc – 1.2 Vdc
Input Current of Ctrl PIN -0.5   0.5 mA

Remote Off Input Current

  3.5


Output Specifications


Parameters Conditions Min Typ Max Units
Voltage Tolerance 100% Load -2   +2 %
Line Regulation Vin(min) to Vin(max) @100% Load -0.2   +0.2 %
Load Regulation 0% Load to 100% Load -0.5   +0.5 %
Ripple & Noise
(BW=20MHz)
With an 0.47uF MLCC 15Vout & 24Vout     150 mVp-p
5Vout & 12Vout     100
Transient Response Setting Time 25% Load Step Change   300 500 us
Transient Response Deviation 25% Load Step Change -5 ±3 +5 %
Temperature Coefficient   -0.02   +0.02 %/℃
Output Power Protection % of Io, Hiccup mode, Auto-recovery 120 150 180 %
Short Circuit Protection Continuous [Hiccup Mode], Auto-Recovery
Over Voltage Protection 5Vout 6.2 Vdc

12Vout

15
15Vout 18
24Vout 30


General Specifications

Parameters Conditions Min Typ Max Units
Isolation Voltage Input to Output (60sec) 1600     Vdc
Input (Output) To Case (60sec) 1000     Vdc
Isolation Resistance 500Vdc 1000
Isolation Capacitance 100kHz, 1V     2200 pF
Switching Frequency 100% Load, Nominal Input   200   KHz
Operating Ambient Temperature
(Power Derating See Derating Graph)
Nominal Vin,
100% Load
YLB10-05S05,
YLB10-05S12
-40   85.5
YLB10-05S15   87.4
YLB10-05S24   89.4
Thermal Impedance 20LFM 15.8 ℃/W
100LFM 11.3
200LFM 9.2
400LFM 6.3
Maximum Case Temperature       105
Storage Temperature   -55   125
Humidity Non-Condensing 5   95 %
Cooling Natural Convection
Case Material Copper
Potting Material Silicone (UL94-V0)
MTBF MIL-HDBK-217F@25℃ (calculated) 1,468,837 Hours
Weight   17.2 g
Dimensions 25.4 x 25.4 x 10.6 mm

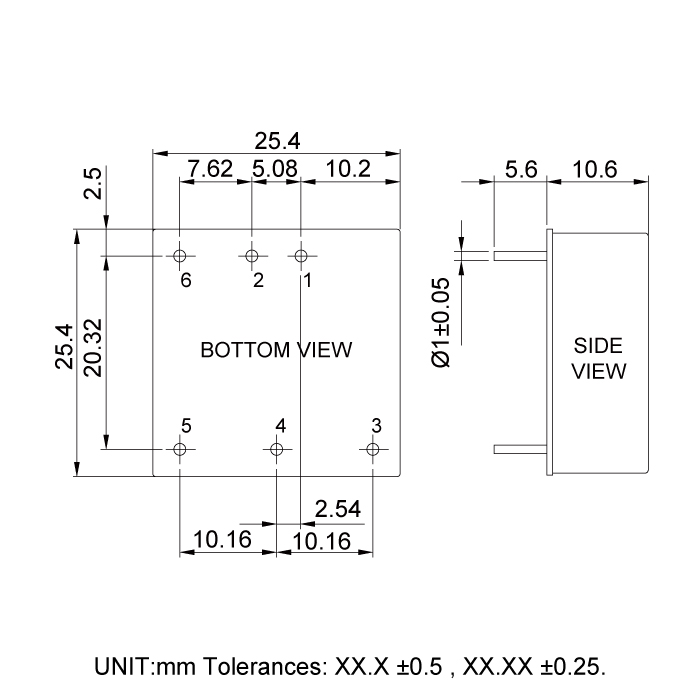

Dimension



YLB10



 Files Download      YLB10-Series.pdf
