YTB10 系列
YDS
節省空間的10W DC-DC電源轉換器。
4:1寬輸入電壓範圍。
DIP16封裝。
1600Vdc隔離電壓。
效率高達88%。
穩壓輸出類型。
無需最小負載。
短路和過電壓保護。
工作溫度:-40°C至+ 91°C。
符合國際安規UL/cUL/IEC/EN 62368-1認證, CB-Report, CE Marking。
通過EMI標準 EN55032:2015認證。
通過EMS標準 EN55035:2017認證。
通過EMC標準Canadian ICES-003 issue7(2020)認證。
通過EMC標準47CFR FCC Part 15 subpart B認證。
Part Number | Input Voltage Range | Input Current | Output Voltage | Output Current | Efficiency | Maximum Capacitor Load | |
---|---|---|---|---|---|---|---|
No-Load | Full-Load | ||||||
Vdc | (mA TYP) | (mA TYP) | Vdc | (mA TYP) | %TYP | uF | |
YTB10-24S05 | 9-36 | 9 | 496 | 5 | 2000 | 84 | 2200 |
YTB10-24S12 | 9-36 | 9 | 479 | 12 | 833 | 87 | 660 |
YTB10-24S15 | 9-36 | 9 | 473 | 15 | 666 | 88 | 470 |
YTB10-24S24 | 9-36 | 9 | 483 | 24 | 416 | 88 | 240 |
YTB10-24D12 | 9-36 | 9 | 473 | ±12 | ±416 | 88 | ±470 |
YTB10-24D15 | 9-36 | 9 | 473 | ±15 | ±333 | 88 | ±270 |
YTB10-48S05 | 18-75 | 6 | 248 | 5 | 2000 | 84 | 2200 |
YTB10-48S12 | 18-75 | 6 | 239 | 12 | 833 | 87 | 660 |
YTB10-48S15 | 18-75 | 6 | 237 | 15 | 666 | 88 | 470 |
YTB10-48S24 | 18-75 | 6 | 236 | 24 | 416 | 88 | 240 |
YTB10-48D12 | 18-75 | 6 | 236 | ±12 | ±416 | 88 | ±470 |
YTB10-48D15 | 18-75 | 6 | 237 | ±15 | ±333 | 88 | ±270 |
Input Specifications
Parameters | Conditions | Min | Typ | Max | Units | |
---|---|---|---|---|---|---|
Input Voltage | 24V Models | 9 | 36 | Vdc | ||
48V Models | 18 | 75 | ||||
Input Surge Voltage (100 ms max.) | 24V Models | -0.7 | 50 | |||
48V Models | -0.7 | 100 | ||||
Start-up Voltage | 24V Models | 9 | Vdc | |||
48V Models | 18 | |||||
Under Voltage Shutdown | 24V Models | 8 | Vdc | |||
48V Models | 15 | |||||
Start-up Time | Constant Resistive Load, Nominal Vin | Power-up | 30 | ms | ||
Input Filter | All Models | Internal Pi type |
Output Specifications
Parameters | Conditions | Min | Typ | Max | Units | |
---|---|---|---|---|---|---|
Voltage Tolerance | 100% load | -2 | +2 | % | ||
Line Regulation | Vin(min) to Vin(max) @100% Load | -0.5 | +0.5 | % | ||
Load Regulation | 0% Load to 100% Load | -0.5 | +0.5 | % | ||
Load Cross Regulation | Asymmetrical Load 25% / 100% Load | Dual Output | -5.0 | +5.0 | % | |
Ripple & Noise (BW=20MHz) | All models | 60 | 100 | mVp-p | ||
Transient Response Setting Time | 25% Load Step Change | 350 | 500 | us | ||
Transient Response Deviation | 25% Load Step Change | -5 | ±3 | +5 | % | |
Temperature Coefficient | -0.03 | +0.03 | %/℃ | |||
Output Power Protection | % of Io, Hiccup mode, Auto-recovery | 120 | 155 | 190 | % | |
Short Circuit Protection | Continuous [Hiccup Mode] ,Auto-Recovery | |||||
Over Voltage Protection | 5Vout | 6.2 | Vdc | |||
12Vout | 15 | |||||
15Vout | 18 | |||||
24Vout | 30 |
General Specifications
Parameters | Conditions | Min | Typ | Max | Units | |
---|---|---|---|---|---|---|
Isolation Voltage | Input To Output (60sec) | 1600 | Vdc | |||
Isolation Resistance | 500Vdc | 1000 | MΩ | |||
Isolation Capacitance | 100kHz,1V | 2200 | pF | |||
Switching Frequency | 100% Load, Nominal Input | Other Output | 390 | KHz | ||
Operating Temperature (Power Derating See Derating Graph) | Nominal Vin, 100% Load | YTB10-24S05, YTB10-48S05 | -40 | 66 | ℃ | |
YTB10-24S12, YTB10-48S12 | 74 | |||||
YTB10-24S15, YTB10-48S15, YTB10-24S24, YTB10-48S24, YTB10-24D12, YTB10-48D12, YTB10-24D15, YTB10-48D15 | 77 | |||||
Thermal Impedance | 20LFM | 20.4 | ℃/W | |||
100LFM | 18.1 | |||||
200LFM | 15.1 | |||||
400LFM | 10.5 | |||||
Maximum Case Temperature | 105 | ℃ | ||||
Storage Temperature | -55 | 125 | ℃ | |||
Humidity | Non Condensing | 5 | 95 | % | ||
Cooling | Natural Convection | |||||
Case Material | Copper, Black Coating | |||||
Potting Material | Silicone (UL94-V0) | |||||
MTBF | MIL-HDBK-217F@25℃ (calculated) | 1.1X106 | Hours | |||
Weight | 10 | g | ||||
Dimensions | 24.3 x 14.3 x 9.8 | mm |

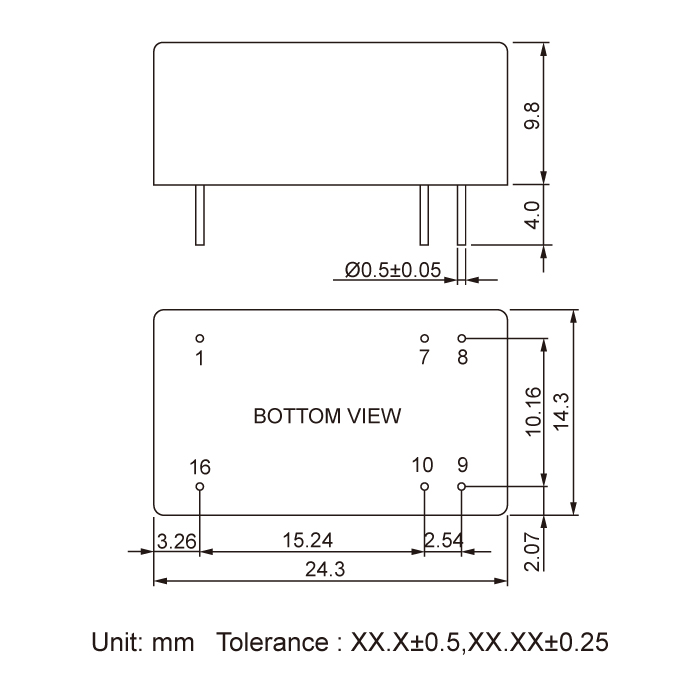

Dimension
Files Download YTB10-Series.pdf
Certification
