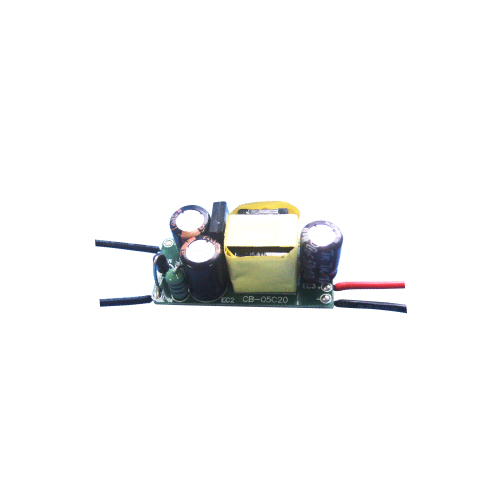

LB6系列 3~6瓦 No PFC 3KVac隔離電壓 LED燈泡驅動器

狀態:
數量:
  • LB6 系列

  • YDS

功能&特點


  • 寬輸入電壓90至264VAC,47至63Hz。

  • 高效率高達80%。

  • 短路/過流/過壓保護。

  • 符合EMI EN55022和EMS EN55024標準。

  • 產品保固3年。

  • 符合ROHS認證。




Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified


Part Number Output
Wattage
Constant
Current
Region
Constant
Current
Efficiency
(W) (V) (mA) %(TYP)
LB6-120-300 3.6 6.0-12.0 300 78
LB6-180-300 5.4 9.0-18.0 300 79
LB6-120-350 4.2 6.0-12.0 350 79
LB6-180-350 6.3 9.0-18.0 350 80
LB6-095-500 4.8 5.0-9.5 500 79
LB6-120-500 6.0 6.0-12.0 500 80
LB6-045-700 3.2 3.0-4.5 700 78
LB6-090-700 6.3 4.5-9.0 700 80


Input Specifications


Parameters Conditions Min Typ Max Units
Rated input voltage Vo, Io nom   100-240   Vac
Voltage Range Vo, Io nom 90   264 Vac
Line Frequency Vi nom,Ionom 47 50/60 63 Hz
Inrush Current Io nom Vi:115VAC     10 A
  Vi:230VAC     20 A
Power Factor PF>0.50 / 115Vac,230Vac at full load


Output Specifications


Parameters Conditions Min Typ Max Units
Isolation Voltage Input / Output 3KVac/ 5mA/5Secs
Current Accuracy Vi=100-240Vac   ±3 ±5 %
Operating
Temperature
Operating at
Vi nom, Io nom
-20   +50
Protection Over Current >108% rated output power(Constant current limiting)
Protection type: Recovers automatically after fault condition is removed
Over Voltage 120%-150% rated output Voltage
Protection type: Recovers automatically after fault condition is removed
Short circuit Recovers automatically after fault condition is removed



Dimension



LB6



 Files Download      LB6-Series.pdf
